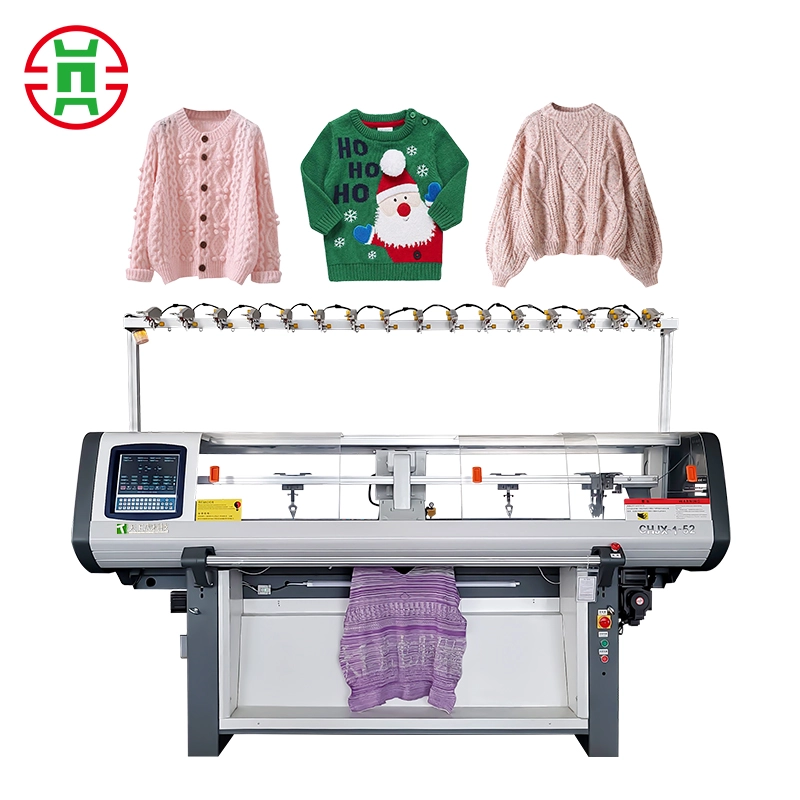

72 Inch Single System Computerized Flat Knitting Machine Description

The single-system flat knitting machine with milling-type needle bed. insert type needle bed(optional). Non-waste yarn COMB device(optional). This series adopts digital technology, which can realize the functions of the transfer truck, hole picking, jacquard, needle narrowing, and other regular pattern knitting functions of the flat knitting machine. This series can weave basic knitting patterns(full needle, single side, etc..), multi-color irregular jacquard, and twisted weft knitting. This series is suitable for knitting sweaters, blankets, scarfs, hats, and clothing accessories.Changhua single system sweater knitting machine.pdf

Changhua 72-inch Single-System Fully Automatic Computerized Flat Knitting Machine Product Introduction

I. Efficient Knitting Production Solutions

The Changhua 72-inch Single-System Fully Automatic Computerized Flat Knitting Machine features a 72-inch (183 cm) width and is equipped with a seventh-generation intelligent control system. Designed specifically for medium-sized knitting companies, it achieves precise knitting control to ±0.01mm, boasts a daily production capacity of 6,000 pieces, and supports a variety of needle gauges from 5 to 16G, making it ideal for a wide range of yarn materials.

II. Core Performance Advantages

Wide-Width Efficient Production:

A 72-inch work area can simultaneously process 10-12 standard products.

Intelligent Single System Optimization:

Energy consumption is reduced by 35%, and noise levels are kept below 60 decibels.

Precision Knitting Control:

High-precision servo motors ensure stitch uniformity.

Multi-Function Process Support:

Over 120 built-in preset patterns, supporting basic jacquard crafts.

Easy Operation:

Equipped with a 15-inch touch screen for intuitive programming and debugging.

III. Professional Application Services

This machine is suitable for:

• Mass production for medium-sized apparel companies

• Large-scale production of basic sweaters

• Entry-level jacquard product development

Changhua Technology offers: √ 3-year warranty √ Free operator training √ 24-hour technical support √ Lifetime software upgrades

Changhua 72-inch Single-System Fully Automatic Computerized Flat Knitting Machine Application Scenarios

I. Medium-Sized Apparel Production

Large-Scale Production of Basic Styles:

A single machine has a daily production capacity of 6,000 pieces, meeting the order needs of companies with an annual production volume of 500,000 pieces. It supports efficient production of basic styles such as regular crew necks and V-necks.

Seasonal Product Response:

Quickly respond to batch demand for seasonal products such as autumn and winter sweaters and spring cardigans.

Enterprise Workwear Customization:

Complete corporate group clothing orders starting from 2,000 pieces, ensuring consistent style.

II. Basic Product Development

Trial Production for Startup Brands:

Support small-batch trial production (minimum 500 pieces) for startup brands to verify market response.

Basic Jacquard Development:

Create entry-level jacquard designs such as simple geometric patterns and stripes.

Teaching and Training Platform:

Serves as a practical tool for textile college students to learn basic programming and production management.

III. Industrial Upgrading and Transition

Mechanization Upgrade for Handicraft Workshops:

Help traditional workshops achieve initial automation transformation.

Satellite Factory Support:

Serves as a supporting production unit for brand OEMs.

Rural Revitalization Project:

Suitable for the development of characteristic knitting industries in county-level economies.

72 Inch Single System Computerized Flat Knitting Machine Specification

Gauge	7G9G10G12G14G16G
Knitting width	52,60,72,80,100,120 Inch
Knitting system	Single system Double carriage single system(optional) 1+1
Knitting speed	Controlled by servo-motor with 32 sections optional, max speed reach 1.6m/s.
Knitting function	Jacquard, tuck, transfer stitch, pick hole, open stitch, hidden stitch and other regular pattern knitting
Racking	Controlled by servo-motor racking within 2 inches and with fine adjusting function.
Stitch density	Controlled by stepping motor, 32 section stitch select-able adjustable scope supported by subdivision technology:0-650,the stitch of the knitwear can be accurately controlled.
Dynamic stitch	Using high speed stepping motor, multi-stitch function can be achieved in one line.
Needle selection	Advanced encoder reading, pin.8-stage selecting needle setup composed of special electromagnet is regarded asefficient full width jacquard needle selector,which can be installed or removed simply from the carriage andmaintained easily.
Transfer system	Not affected by the direction of the carriage, minute knitting.
Quickly turning	Intelligent switching braiding system improves machine weaving efficiency.
Take-down system	Infrared alarm,Computer programs instruction, stepper motor control,32-stagetension selection with an adjustablerange between0-100.

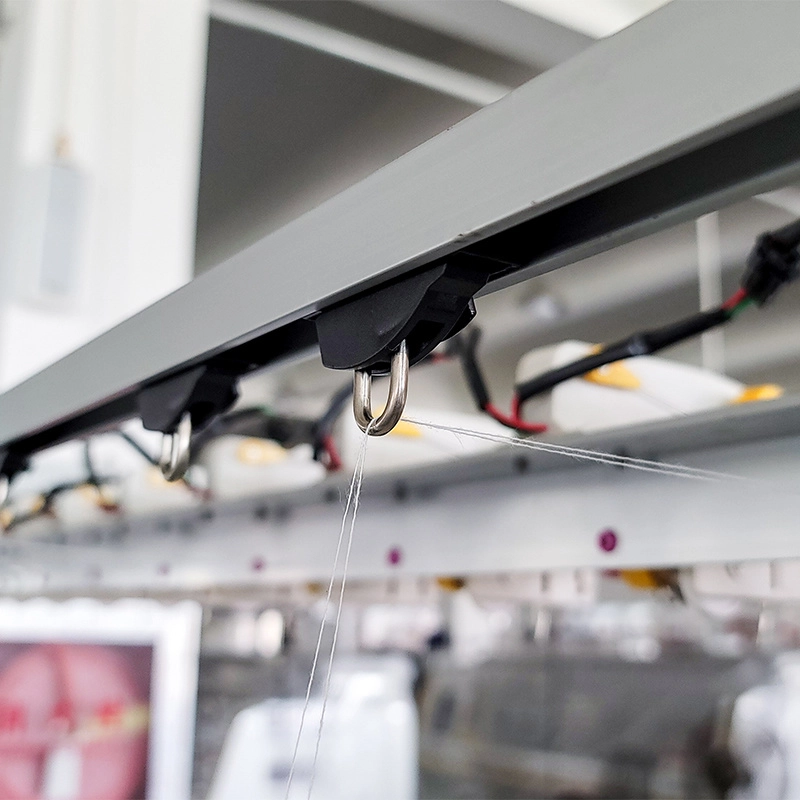

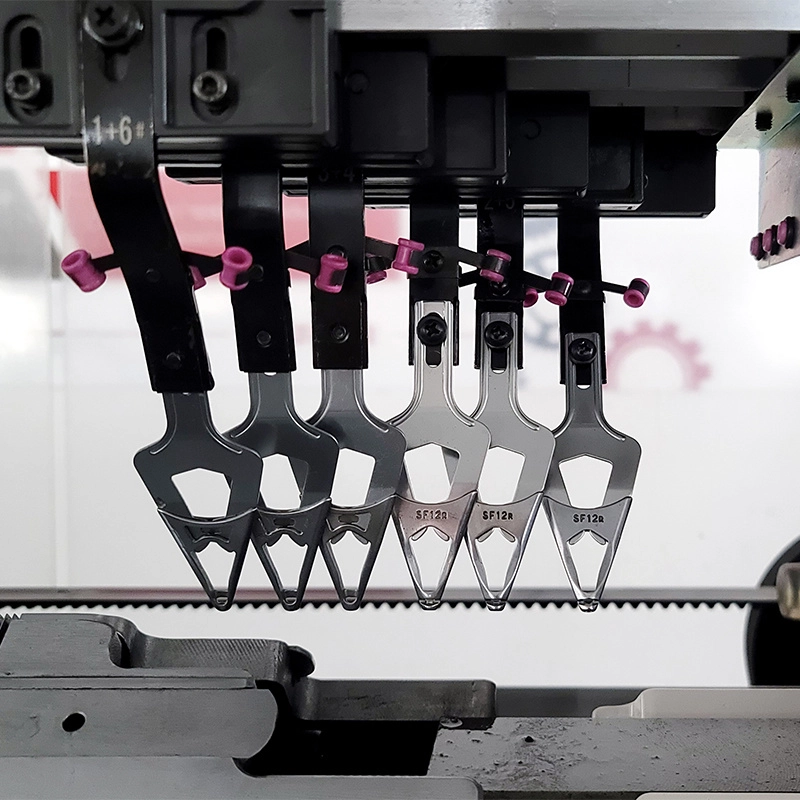

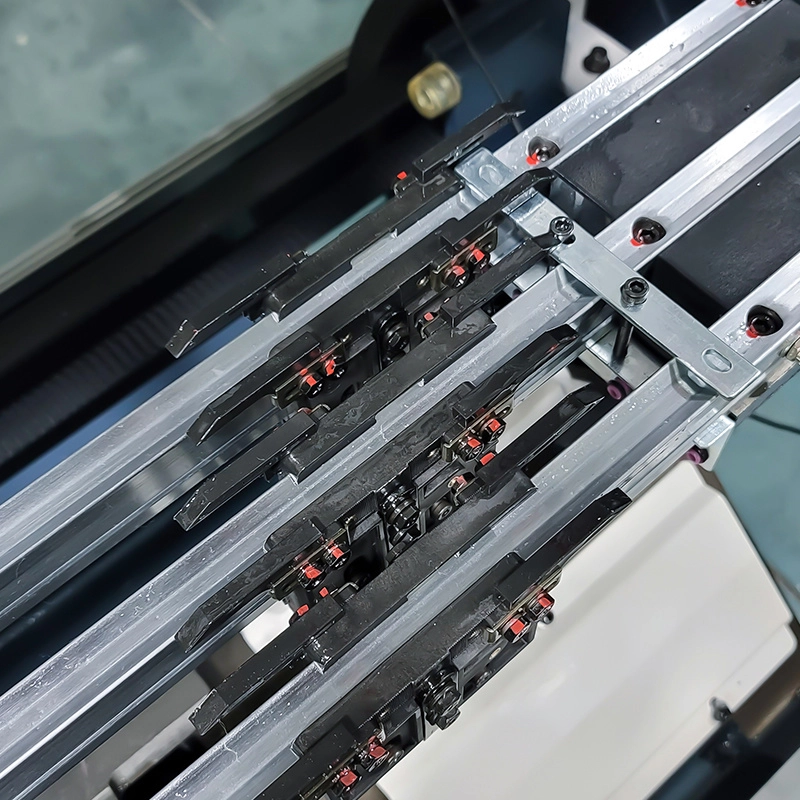

Color-changing system	2x3 yarn feeders on each side of 3 guide rails, shift able on any needle position.

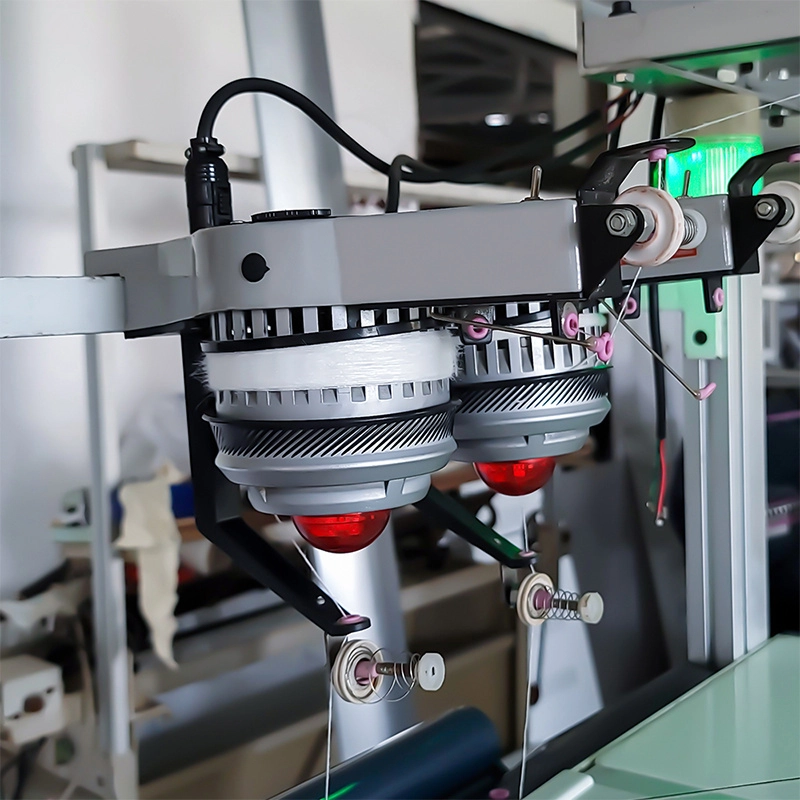

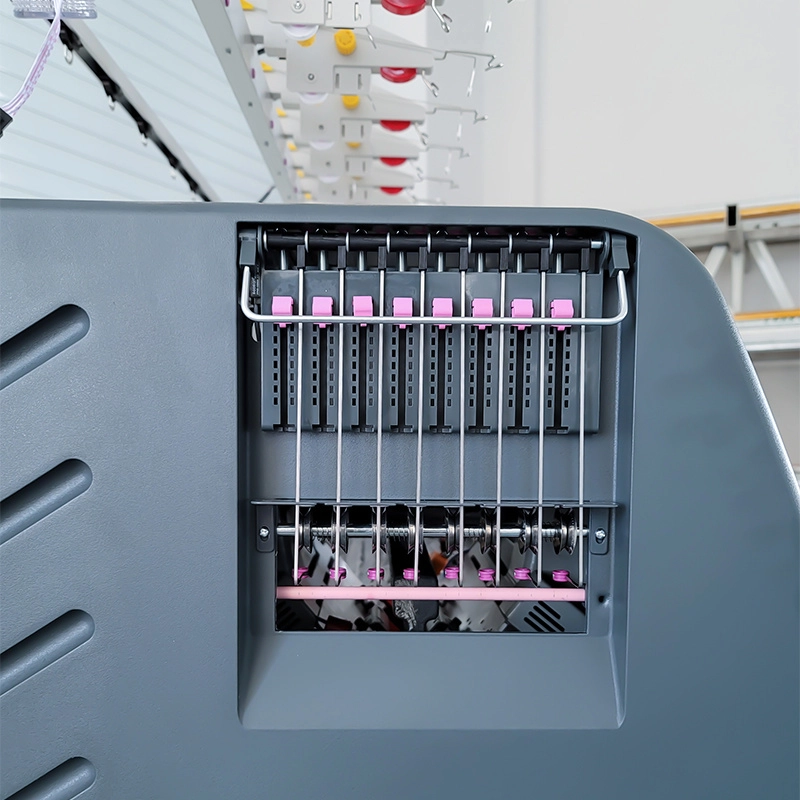

Yarn feeder device	Accurately control the tension of the yarn and ensure the consistency of the whole woven piece quality.
Protection system	The machine will automatically alarm if yarn-breaking, knots, foating varn, rewind, end of kniting, fail of racking. needle breakage, error programming occur, also set up the safety auto-lock protect device.
Control system	1.lCD industrial display, Can display various parameters, which can be adjustable during operation. 2.U5B memorinterface,Svstem memory 2G. 3. Free design system is visual and easy to understand and software upgrade free of charge. 4, Support multi-language operation as Chinese and English, Spanish, Russian etc.
Network function	Has network interface,enable remote-monitoring via network,and connecting with ERP system.
Power supply	Single-phase 220V/three-phase 380v,adopt advanced CMOs technology, having, memorizing function at powershock stop.
Non waste yarn Comb device	Non waste yarn Comb device (Optional)
Volume and weight	2500*900*1700mm,650kgs(52inch)3800*900*1700mm,900kgs(80inch double carriages)
