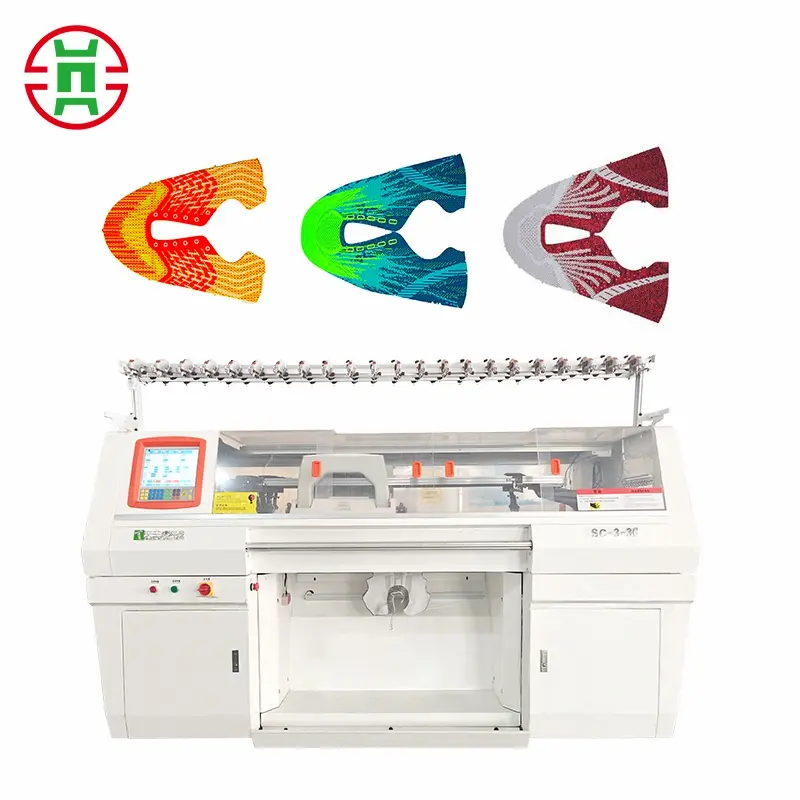

80 Inch Three System Shoe Upper Knitting Machine

80 Inch Three System Shoe Upper Knitting Machine Description

Three system 3D Shoe Upper Knitting Machine specialized in making shoe uppers with high production efficiency. This series is a fully automatic computer knitting machine without a bottom plate device. lt uses digital technology to realize the functions of transfer, tuck, intarsia without dotted lines, iacquard, embroidery, open narrowing, and other regular pattern knitting functions. lt can weave basic knitting weaves, multi-color random jacquard, intarsia, twisted flowers, pick holes, and other weft weaves. It is also suitable for knitting shoe uppers and other accessories with raw materials such as silk, spun silk, synthetic fiber, wool, rayon and blended varn. They are the mainstream machines for the professional production of 3D shoe uppers.Changhua shoe upper knitting machine.pdf

Changhua 80-inch Three-System Fully Automatic Shoe Upper Machine Product Introduction

1. Breakthrough in Shoe Upper Manufacturing Technology

The Changhua 80-inch Three-System Fully Automatic Shoe Upper Machine utilizes innovative three-system collaborative technology and features an ultra-wide 80-inch (203 cm) working surface. It is designed for efficient production of uppers for sports shoes, casual shoes, and other products. Equipped with a 10th-generation intelligent control system, the machine achieves precision knitting of ±0.01mm, with a daily production capacity of 5,000 pairs. It also supports complex processes such as 3D knitting.

2. Core Performance Advantages

Three-System Efficient Collaboration:

Knitting efficiency increased by 80% compared to a two-system system

Ultra-Wide Production:

Can knit 8-10 pairs of standard uppers simultaneously

Intelligent Process Control:

AI algorithm automatically optimizes parameters, achieving a defect rate of <0.3%

Versatile Adaptability:

Supports various upper processes including Flyknit and Primeknit

Energy Saving and Environmental Protection:

Energy consumption reduced by 40%, noise level <55 decibels

3. Professional Application Services

This machine is suitable for:

• Mass production of sports brand uppers

• High-end custom upper production

• Functional upper R&D

Changhua Technology provides:

√ 5-year warranty

√ Professional technical training

√ 24-hour response service

√ Lifetime system upgrades

Changhua's 80-inch Three-System Fully Automatic Shoe Upper Machine Application Scenarios

I. Large-Scale Sports Shoe Production

International Brand OEM Base:

A single machine has a daily production capacity of 5,000 pairs, meeting quarterly orders exceeding one million from brands like Nike and Adidas, and supports standardized production of complex processes like Flyknit.

Custom Upper Rapid Response:

Adapting to personalized customization needs, achieving a 72-hour full-process delivery from design to mass production.

Multifunctional Upper Production:

A single machine can simultaneously handle upper requirements for different categories, including running and basketball shoes.

II. Innovative Upper R&D

Smart Upper Development:

Integrating flexible sensors to develop products with features like gait analysis and pressure monitoring.

Environmentally Friendly Material Application:

Supporting knitting and testing of sustainable raw materials such as recycled fibers and bio-based materials.

Military Specialty Upper:

Meeting specialized functional requirements such as puncture resistance and stealth camouflage.

III. Industrial Upgrade Demonstration

Digital Factory Construction:

Connected equipment enables cloud-based management of production data, increasing efficiency by 65%.

Green Manufacturing Benchmark:

The energy optimization system saves 200,000 kWh of electricity annually and has achieved LEED certification.

Traditional Production Line Transformation:

A single machine can replace six traditional production lines, reducing labor costs by 75%.

80 Inch Three System Shoe Upper Knitting Machine Specification

Gauge	14G16G18G
Knitting width	36, 52, 72, 80 Inch
Knitting system	Three system
Knitting speed	Controlled by servo-motor with 128 sections   optional, max speed reach 1.6m/s
Knitting function	Knit, miss, tuck, transfer, pointel, intarsia,   jacquard, apparent or hide shaping and other regular or irregular patterns.
Racking	Controlled by servo-motor racking within 2 inches   and with fine adjusting function.
Stitch density	Controlled by stepping motor, 128 section stitch   select-able adjustable scope supported by subdivision technology: 0-650, the   stitch of the knitwear can be accurately controlled.
Dynamic stitch	Using high speed stepping motor, multi-stitch   function can be achieved in one line.
Needle selection	Advanced encoder reading pin.8-stage selecting   needle setup composed of special electromagnet is regarded as efficient full   width jacquard needle selector, which can be installed or removed simply from   the carriage and maintained easily.
Sinker system	Using the control principle of cross sinker, more   lines of local braiding can be carried out, which plays a positive role in the   braiding of complex tissues. Independent signal, subsystem control.
Transfer system	Combined design, single or double cam system all can   transfer together or separately. Also one can do transfer, another cam system   for knitting, which will achieve high production.
Quickly turning	Intelligent switching braiding system improves   machine weaving efficiency.
Take-down system	Infrared alarm, computer programs instruction,   stepper motor control, 128-stagetension selection with an adjustable range   between 0-100.
Color-changing system	2x8 yarn feeders on each side of 4 guide rails,   shift able on any needle position.
Yarn feeder device	The roller feeding device can precisely control the   tension of the yarn and ensure the consistency of the whole fabric quality.
Protection system	The machine will automatically alarm if   yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking,   needle breakage, error programming occur, also set up the safety auto-lock   protect device.
Refueling device	Automatic refueling: Control the refueling time and   frequency by setting the time. The oil pump lubricate the jack and long jack   needle on the needle bed automatically to reduce the wear of the machine and   increase its service life.

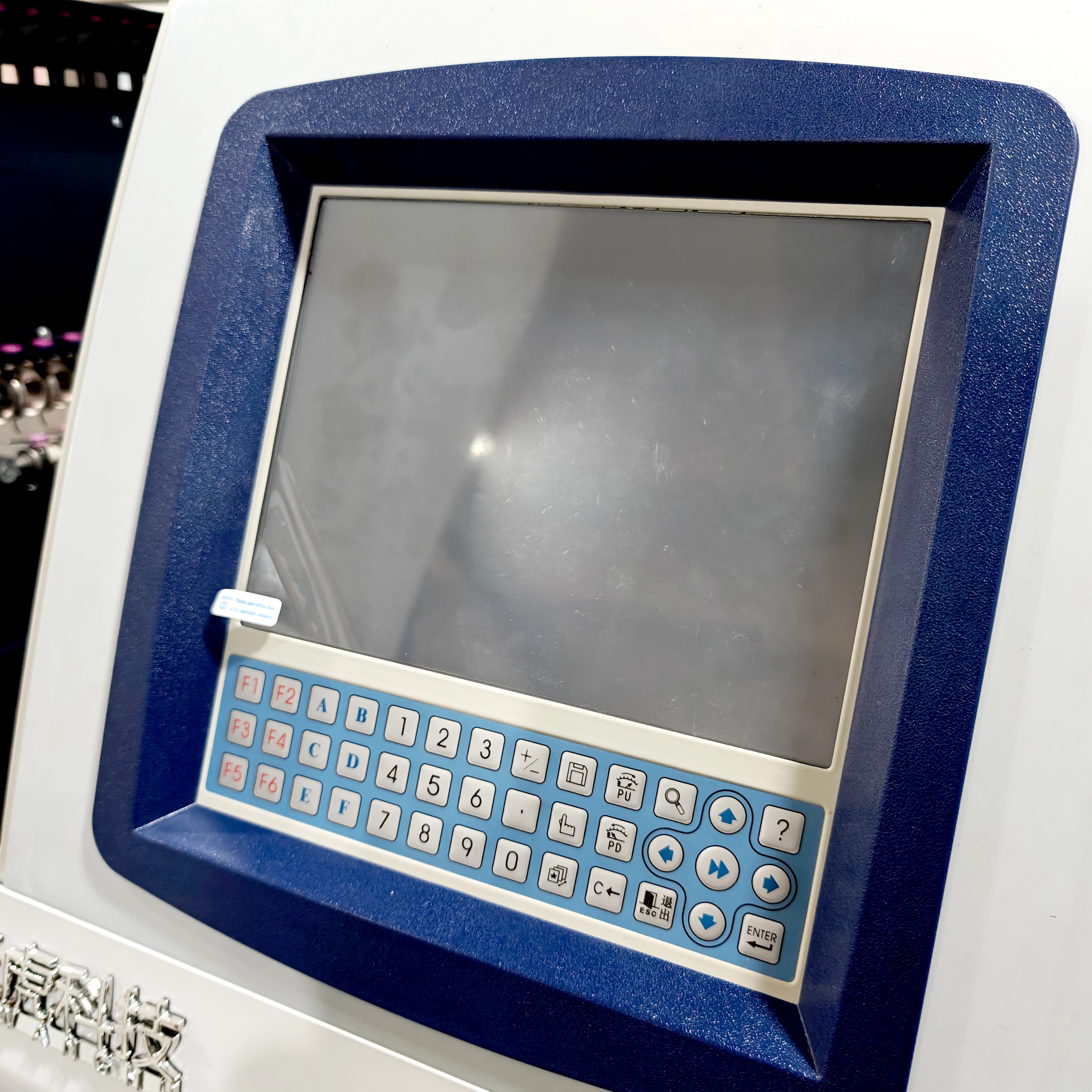

Control system	1. LCD industrial display, can display various   parameters, which can be adjustable during operation. 2.USB memory interface, System memory 2G. 3.Free design system is visual and easy to   understand and software upgrade free of charge. 4.Support multi-language operation as Chinese and   English, Spanish, Russian etc.
Network function	Has network interface, enable remote-monitoring via   network, and connecting with ERP system.
Power supply	Single-phase 220V/three-phase 380V, adopt advanced   CMOS technology, having memorizing function at power shock stop.
Sub roller	Sub roller (Optional)
Presser device	Positioned on front and rear presser (Optional)
Volume and weight	3000*1000*1800mm1150kgs(52inch)
Reducing device	Automatic refueling: Control the refueling time and   frequency by setting the time. The oil pump lubricate the jack and long jack   needle on the needle bed automatically to reduce the wear of the machine and   increase its service life.
