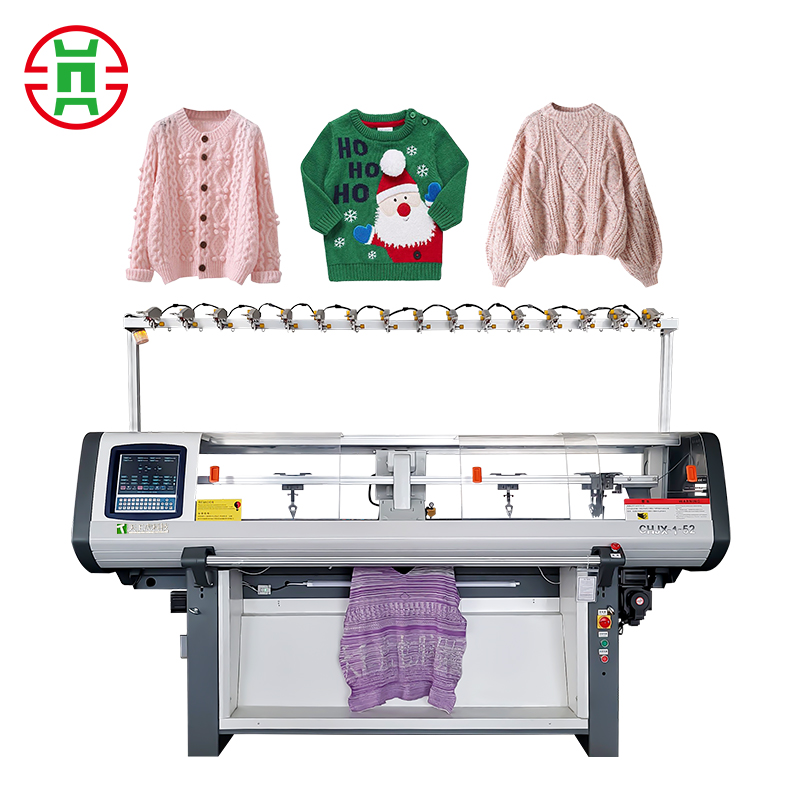

80 Inch Single System Scarf Flat Knitting Machine

80 Inch Single System Scarf Flat Knitting Machine Description

The single-system flat knitting machine with milling-type needle bed. insert type needle bed(optional). Non-waste yarn COMB device(optional). This series adopts digital technology, which can realize the functions of the transfer truck, hole picking, jacquard, needle narrowing, and other regular pattern knitting functions of the flat knitting machine. This series can weave basic knitting patterns(full needle, single side, etc..), multi-color irregular jacquard, and twisted weft knitting. This series is suitable for knitting sweaters, blankets, scarfs, hats, and clothing accessories.Changhua scarf knitting machine.pdf

Changhua 80-inch Single-System Fully Automatic Scarf Knitting Computerized Flat Knitting Machine Product Introduction

1. Professional Scarf Manufacturing Equipment

The Changhua 80-inch Single-System Fully Automatic Scarf Knitting Computerized Flat Knitting Machine features an ultra-wide 80-inch (203 cm) width and is equipped with a ninth-generation intelligent control system, specifically designed for the production of high-quality scarves. This machine achieves precise knitting control to ±0.01mm, with a daily production capacity of 6,000 pieces. It supports a variety of needle gauges from 5 to 16G, making it ideal for functional yarns such as cashmere and silk.

2. Core Performance Advantages

High-Efficiency Production System:

80-inch working width can produce 10 standard scarves simultaneously

Intelligent Single System Optimization:

Energy consumption is reduced by 35%, and noise levels are kept below 58 decibels

Precision Edge Processing:

High-precision servo control ensures smooth and beautiful scarf edges

Multi-Function Process Support:

120+ built-in preset patterns, supporting complex jacquard crafts

3. Professional Application Services

This machine is suitable for:

• Mass production of high-end scarves

• Customized corporate gifts

• Functional scarf R&D

Changhua Technology offers: √ 3-year warranty √ Free process training √ 24-hour technical support √ Lifetime system upgrades

This machine has obtained international certifications such as CE and ISO9001, making it a preferred choice for the scarf manufacturing industry.

Changhua 80-inch Single-System Fully Automatic Scarf Knitting Machine Application Scenarios

I. Large-Scale Production

High-End Scarf Mass Production:

A single machine can produce 6,000 scarves per day, meeting the quarterly orders of luxury brands and ensuring standardized production of high-end materials such as cashmere and silk.

Corporate Gift Customization:

Precisely controls weight and dimensional tolerances, supporting customized jacquard patterns with company logos and orders starting from 5,000 pieces.

Fast Fashion Supply Chain:

Adapts to the rapid launch needs of brands like ZARA, enabling rapid production of 20 new items per week.

II. Innovative R&D Applications

Functional Scarf Development:

Supports application testing of new materials such as temperature-control fibers and antibacterial yarns.

Smart Wearable Products:

Provides professional knitting solutions for smart scarves with integrated flexible sensors.

Special Process R&D:

Enables small-batch trial production of complex techniques such as gradient dyeing and three-dimensional jacquard patterns.

III. Industrial Upgrading Practices

Traditional Factory Transformation:

A single machine can replace three traditional flat knitting machines, increasing production efficiency by 50%.

Digital Production Management:

Networked equipment enables real-time collection and analysis of production data.

Green Manufacturing Demonstration:

Optimized algorithms reduce raw material waste by 15%, saving 2.5 tons of yarn annually.

80 Inch Single System Scarf Flat Knitting Machine Specification

Gauge	7G9G10G12G14G16G
Knitting width	52,60,72,80,100,120 Inch
Knitting system	Single system Double carriage single system(optional) 1+1
Knitting speed	Controlled by servo-motor with 32 sections optional, max speed reach 1.6m/s.
Knitting function	Jacquard, tuck, transfer stitch, pick hole, open stitch, hidden stitch and other regular pattern knitting
Racking	Controlled by servo-motor racking within 2 inches and with fine adjusting function.
Stitch density	Controlled by stepping motor, 32 section stitch select-able adjustable scope supported by subdivision technology:0-650,the stitch of the knitwear can be accurately controlled.
Dynamic stitch	Using high speed stepping motor, multi-stitch function can be achieved in one line.
Needle selection	Advanced encoder reading, pin.8-stage selecting needle setup composed of special electromagnet is regarded asefficient full width jacquard needle selector,which can be installed or removed simply from the carriage andmaintained easily.
Transfer system	Not affected by the direction of the carriage, minute knitting.
Quickly turning	Intelligent switching braiding system improves machine weaving efficiency.
Take-down system	Infrared alarm,Computer programs instruction, stepper motor control,32-stagetension selection with an adjustablerange between0-100.

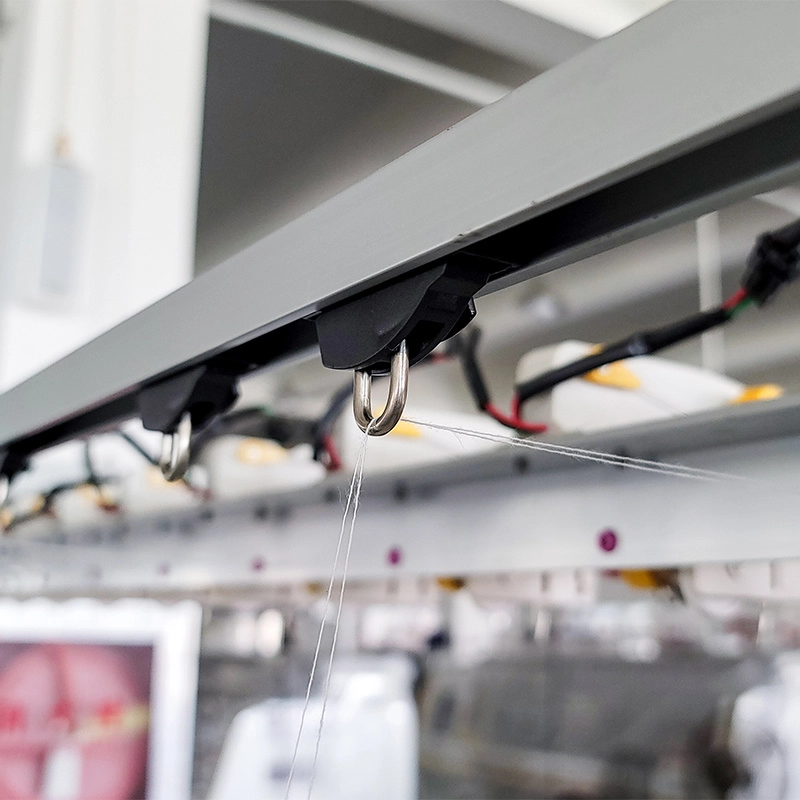

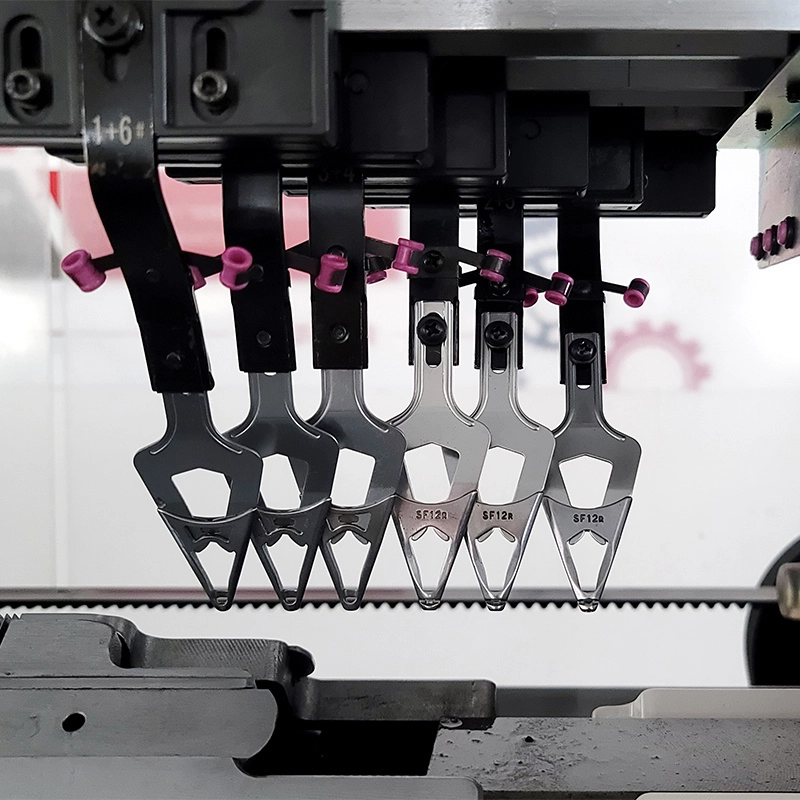

Color-changing system	2x3 yarn feeders on each side of 3 guide rails, shift able on any needle position.
Yarn feeder device	Accurately control the tension of the yarn and ensure the consistency of the whole woven piece quality.
Protection system	The machine will automatically alarm if yarn-breaking, knots, foating varn, rewind, end of kniting, fail of racking. needle breakage, error programming occur, also set up the safety auto-lock protect device.
Control system	1.lCD industrial display, Can display various parameters, which can be adjustable during operation. 2.U5B memorinterface,Svstem memory 2G. 3. Free design system is visual and easy to understand and software upgrade free of charge. 4, Support multi-language operation as Chinese and English, Spanish, Russian etc.
Network function	Has network interface,enable remote-monitoring via network,and connecting with ERP system.
Power supply	Single-phase 220V/three-phase 380v,adopt advanced CMOs technology, having, memorizing function at powershock stop.
Non waste yarn Comb device	Non waste yarn Comb device (Optional)
Volume and weight	2500*900*1700mm,650kgs(52inch)3800*900*1700mm,900kgs(80inch double carriages)

Scarf Knitting Machine Good Reviews from Customers

Single System Scarf Flat Knitting Machine Manufacturer & Supplier

Changshu Changhua Smart Manufacturing Technology Co., Ltd. is located in Changshu, Jiangsu, the birthplace of the clothing industry. It is a professional large-scale knitting garment machinery manufacturer, which has been developing for more than 20 years, with independent research and creation.

1. Company Profile and Development History

Changhua was established in 2005 and is a national high-tech enterprise focusing on the research and development and manufacturing of computer flat knitting machines. After nearly 20 years of innovation and development, the company has grown into a leading brand in the domestic computer flat knitting machine industry, and its products are exported to more than 30 countries and regions around the world. The company is headquartered in Shaoxing, Zhejiang, a major textile industry town in China. It has a modern production base covering an area of 50,000 square meters and an annual production capacity of more than 3,000 computer flat knitting machines of various types.

2. Core Technology Advantages and Product System

Independent R&D Capability

The company has a provincial enterprise technology center and has more than 80 patented technologies, including 15 invention patents. The core team consists of more than 20 senior engineers with deep accumulation in mechanical design, electronic control systems and other fields.

Full range of product matrix

Covering single-system, dual-system and multi-system computer flat knitting machines, the weaving width ranges from 36 inches to 72 inches, which can meet the diverse needs of the entry-level to high-end markets.

Intelligent Solutions

The latest i-Knit intelligent production system has realized advanced functions such as equipment networking, remote monitoring, and intelligent scheduling, helping customers build digital factories.

3. Market layout and service network

Changhua Technology has built a complete global marketing service system:

• Domestic market: 10 offices have been set up in textile industry clusters such as Guangdong, Jiangsu, and Shandong

• Overseas market: localized service teams have been established in Vietnam, Bangladesh, Turkey and other countries

• After-sales guarantee: 7×24-hour technical support is provided, and on-site service is promised to arrive at major domestic industrial areas within 48 hours
