72 Inch Whole Garment Flat Knitting Machine

You are here: Home » Knitting Machines » Flat Knitting Machine » Whole Garment Flat Knitting Machine » 72 Inch Whole Garment Flat Knitting Machine

72 Inch Whole Garment Flat Knitting Machine

The Whole Garment Flat Knitting Machine with 5.0 inch motor control small carriage: High efficiency, good stability, alarm when abnormal, prevent needle crash. Fully formed combined roller: The transverse tension and front and rear bed are separately controlled. lt can realize the independent control of a variety of pulling forces and front and rear beds in one line, and meet the pulling force requirements of different organizations. lt is a necessary configuration for whole garment.The Whole Garment Flat Knitting Machine with 5.0 inch motor control small carriage: High efficiency, good stability, alarm when abnormal, prevent needle crash. Fully formed combined roller: The transverse tension and front and rear bed are separately controlled. lt can realize the independent control of a variety of pulling forces and front and rear beds in one line, and meet the pulling force requirements of different organizations. lt is a necessary configuration for whole garment.

72 Inch 9.2G Whole Garment Flat Knitting Machine offered by China manufacturer Changhua. Buy wholesale at superior prices and high quality.

Brand:
Changhua
Gauge:
6.2G、7.2G、9.2G、10.2G、13.2G
Knitting Width:
72,80 Inch
Knitting System:
WHOLE GARMENT SYSTEM
Knitting Speed:
Controlled by servo-motor with 128sections optional, max speed reach 1.6m/s.
Knitting Function:
Pointelle, tuck, intarsia, needle, all kinds of jacquard, apparent shape, open needle, hidden shape and so on.

Quantity:
Availability:





Inquire

Product Description

72 Inch Whole Garment Flat Knitting Machine Description

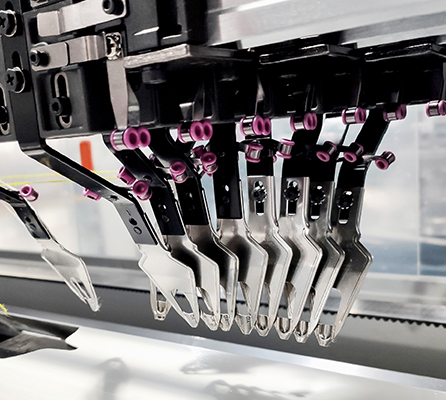

Whole Garment Flat Knitting Machine Detail Drawing

Whole Garment Flat Knitting Machine Detail Drawing (2)

Whole Garment Flat Knitting Machine Detail Drawing (4)

Whole Garment Flat Knitting Machine Detail Drawing (3)

Changhua 72-inch Fully Automatic One-Line Ready-Made Sweater Computerized Flat Knitting Machine Product Introduction

1. Technological Innovation and Product Positioning

The Changhua 72-inch Fully Automatic One-Line Ready-Made Sweater Computerized Flat Knitting Machine is a revolutionary product launched by the company in 2024. It utilizes the world's first integrated "knitting-molding-sewing" technology. This equipment achieves breakthrough automation of the entire production process from yarn to garment. The ultra-wide 72-inch (183 cm) machine, combined with an intelligent molding system, consolidates seven traditional sweater production steps into one, increasing production efficiency by 300%. Equipped with an eighth-generation AI intelligent control system and a 24-inch full-color touch screen, it supports 3D knitting simulation and real-time process adjustments.

2. Core Competitive Advantages

First-Line Garment Technology

Integrates knitting, needle-cutting, and stitching functions to directly produce complete garments, eliminating post-processing steps.

Intelligent Adaptive System

An AI algorithm automatically adjusts stitch density to perfectly fit different body shapes and patterns.

Ultra-Efficient Production

A single machine can produce up to 500 finished sweaters per day, reducing labor requirements by 80%.

Precision Molding Control

Utilizes 0.01mm-level high-precision sensors to ensure the dimensional error of each garment is within ±0.5cm.

Green Smart Manufacturing

Energy consumption is reduced by 60%, and the scrap rate is kept below 1%, meeting the highest international environmental standards.

3. Application Scenarios and Service Guarantees

This model is pioneeringly applied in:

Future Garment Factory: Building an unmanned intelligent production line
Personalized Customization: Supporting a C2M business model with a minimum order of one piece
Emergency Supplies Production: Rapidly responding to special needs such as disaster relief and epidemic prevention.

Changhua Technology offers:

√ Industry-first 10-year warranty

√ Exclusive "Gold Diamond" VIP service

√ AI remote diagnosis and maintenance

√ Lifetime free process upgrades

Sample Display

whole garment flat knitting machine

品能样品集合

Changhua Knitting Machine For Sweaters

Knitted items produced by changhua computer sweater knitting machine

Changhua 72-inch Fully Automatic One-Line Ready-to-Wear Sweater Computerized Flat Knitting Machine Application Scenarios

1. A New Era of Intelligent Manufacturing

Unmanned Dark Factory

Automates the entire production process from raw materials to finished garments. A single production line requires only two technicians for 24/7 operation, reducing labor costs by 85%.

Digital Twin Demonstration Line

Synchronizes production data to the virtual factory in real time, continuously optimizes process parameters through AI algorithms, and keeps product defect rates below 0.3%.

Global Distributed Manufacturing

Standardized equipment interfaces support collaboration across multiple global sites, enabling a new "cloud-based design, local production" manufacturing model.

2. A Revolution in Personalized Customization

High-End Private Customization Workshop

Supports single-piece orders and completes the entire process from measurement to finished garment within 72 hours, meeting the exclusive needs of VIP customers.

Intelligent Body Fitting System

Automatically adjusts patterns based on 3D scanning data to perfectly fit different body types.

Designer Co-creation Platform

Provides independent designers with digital tools to realize their creativity, enabling the one-click creation of complex artistic forms.

3. Emergency Response and Sustainable Development

National-Level Emergency Supplies Production

During public emergencies, this platform can quickly switch to producing urgently needed supplies, such as protective clothing, with a daily production capacity of 3,000 pieces.

Zero Inventory Quick Response Model

Supports brand owners with "on-demand production," increasing inventory turnover by fivefold and reducing resource waste.

Green Circular Economy

Utilizes a biodegradable yarn identification system to automatically disassemble and recycle used sweaters.

Specification

72 Inch Whole Garment Flat Knitting Machine Specification

Gauge	6.2G7.2G9.2G10.2G13.2G
Knitting width	72,80 Inch
Knitting system	WHOLE GARMENT SYSTEM
Knitting speed	Controlled by servo-motor with 128sections optional, max speed reach 1.6m/s.
Knitting function	Pointelle, tuck, intarsia, needle, all kinds of jacquard, apparent shape, open needle, hidden shape and so on.
Racking	Controlled by servo-motor racking within 2 inches and with fine adjusting function. Transfer and knit occurs synchronous, more efficient.
Stitch density	Controlled by stepping motor, 128 section stitch select-able adjustable scope supported by subdivision technology:0-650 the stitch of the knitwear can be accurately controlled.
Dynamic stitch	Using high speed stepping motor, multi-stitch function can be achieved in one line.
Needle selection	Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector, which can be installed or removed simply from the carriage and maintained easily.
Transfer system	Combined design, single or double cam system all cam transfer together or separately. Also one can do transfer, another cam system for knitting, which will achieve high production.
Quickly turning	Intelligent switching braiding system improves machine weaving efficiency.
Take-down system	The transverse tension and front and rear bed are separately controlled. It can realize the independent control of a variety of pulling forces and front and rear beds in one line, and meet the pulling force requirements of different organizations. It is a necessary configuration for whole garment.
Color-changing system	2x8 yarn feeders on each side of 4 guide rails, shift able on any needle position; Motorized Feeder (Optional).
Yarn feeder device	Accurately control the tension of the yarn and ensure the consistency of the whole woven piece quality.
Protection system	The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device.
Control system	1. LCD industrial display, can display various parameters, which can be adjustable during operation. 2.USB memory interface, System memory 2G. 3.Free design system is visual and easy to understand and software upgrade free of charge. 4.Support multi-language operation as Chinese and English, Spanish, Russian etc.
Network function	Automatic refueling: Control the refueling time and frequency by setting the time. The oil pump lubricate the jack and long jack needle on the needle bed automatically to reduce the wear of the machine and increase its service life.
Power supply	Single-phase 220V/three-phase 380V,adopt advanced CMOS technology, having memorizing function at power shock stop.
Non waste yarn Comb device	The device equipped with 2 clips and 1 scissors on both sides, High precision step motor is used for wire feeding, and servo motor is used to control up and down.
Volume and weight	350010001800mm,1450kgs(72inch);370010001800mm,1500kgs(80inch)
Sinker system	Controlled by stepping motor, adjustable to different knitwear, up to be various results of shaping and patterns.
Reducing device	Automatic refueling: Control the refueling time and frequency by setting the time. The oil pump lubricate the jack and long jack needle on the needle bed automatically to reduce the wear of the machine and increase its service life.
