80 Inch Simple Double System Scarf Knitting Machine

80 Inch Simple Double System Scarf Knitting Machine Description

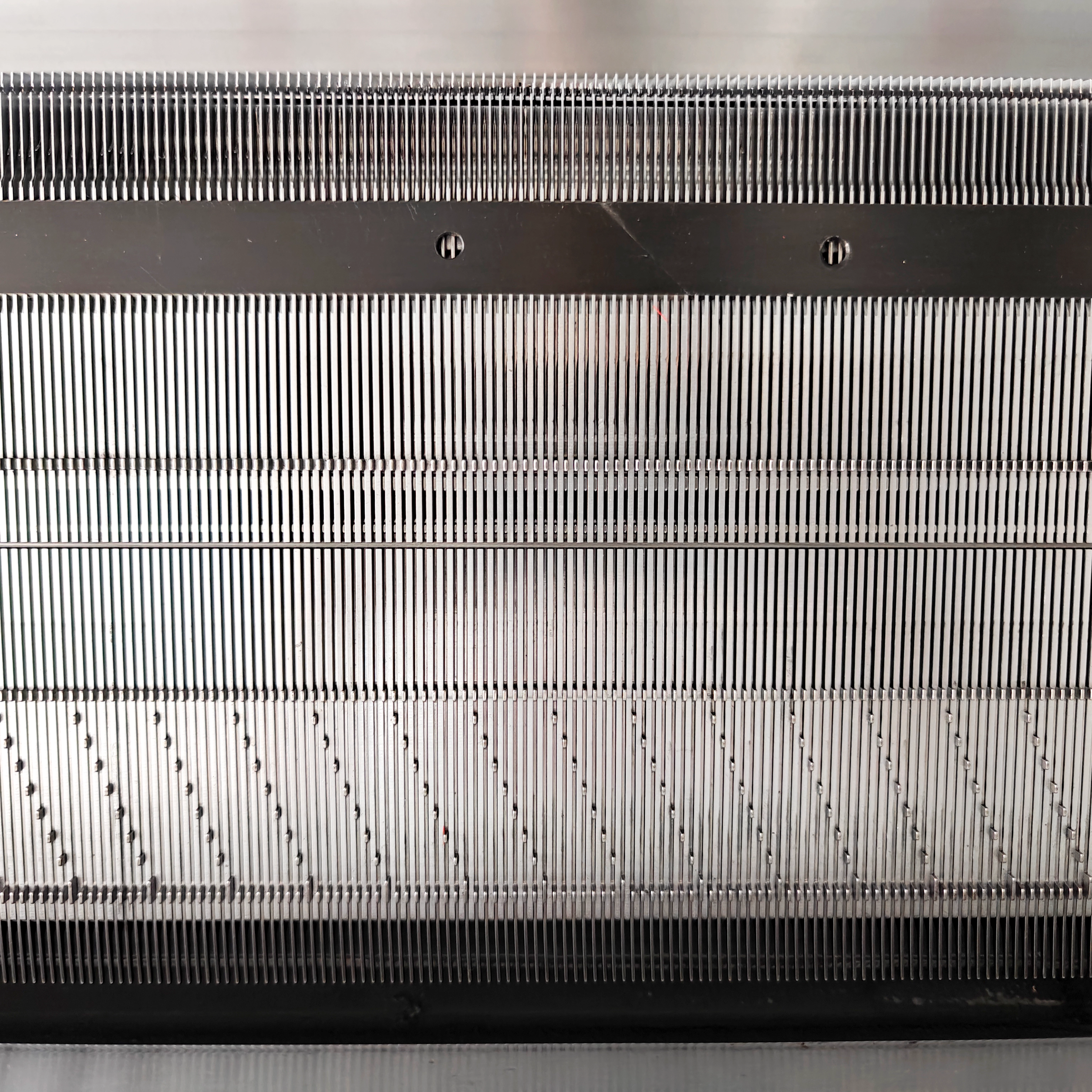

The simple double system flat knitting machine with milling type needle bed. Insert type needle bed (optional). non-waste yarn COMB device (optional). This series adopts digital technology, which can realize the functions of transfer, tuck, hole picking, jacquard, needle narrowing, and other regular pattern knitting functions of the flat knitting machine. The machine can automatically scan the knitting file before starting knitting and automatically select the system suitable for the pattern, thus genuinely realizing the fast rotation of the machine carriage with high speed and high efficiency.Changhua simple double system scarf knitting machine.pdf

Changhua 80-inch Straight-Double System Fully Automatic Scarf Knitting Computerized Flat Knitting Machine Product Introduction

1. New Breakthrough in Scarf Manufacturing Technology

The Changhua 80-inch Straight-Double System Fully Automatic Scarf Knitting Computerized Flat Knitting Machine utilizes an innovative direct-drive dual-system design and features an ultra-wide 80-inch (203 cm) work platform. Equipped with an 11th-generation intelligent control system, it achieves ultra-high knitting precision of ±0.005mm, with a daily production capacity of 10,000 pieces. It supports a full range of needle gauges from 3 to 20G, making it perfectly compatible with a variety of high-end yarn materials.

2. Core Performance Advantages

Direct Drive Dual System Collaboration:

Dual-system direct drive technology increases efficiency by 80% and reduces energy consumption by 35%.

Ultra-Wide Efficient Production:

Can knit up to 15 standard scarves simultaneously.

Intelligent Process Optimization:

AI algorithms automatically adjust knitting parameters, achieving a defect rate of <0.5%.

Precision Edge Control: Driven by a German linear motor, edge flatness tolerance ≤0.3mm.

3. Professional Application Services

This machine is suitable for:

• Mass production of luxury brand scarves

• Functional scarf R&D

• Specialty scarf production

Changhua Technology provides: √ 5-year warranty √ Professional technical training √ 24-hour response service √ Lifetime system upgrades

This machine has obtained international certifications such as CE and ISO, setting a technological benchmark in the scarf manufacturing industry.

Changhua 80-inch Straight Double System Fully Automatic Scarf Knitting Machine Application Scenarios

I. High-End Scarf Large-Scale Production

Luxury Brand Production Base:

Daily production capacity of 10,000 scarves, meeting large-volume orders from brands like Hermès. ±0.005mm precision ensures each product meets luxury standards.

Cashmere Scarf Specialization:

Dual-system direct-drive technology perfectly processes 16μm ultra-fine cashmere, with a raw material loss rate of <1%.

Corporate Gift Customization:

Supports jacquard customization with over 200 corporate logos, with a minimum production batch of 5,000 scarves.

II. Innovative Product Development

Smart Temperature Control Scarf:

Integrated with graphene heating film, developed specifically for -30°C extreme cold environments.

Medical Monitoring Scarf:

Embedded with flexible sensors, monitors heart rate and other health data in real time.

Military Specialty Scarf:

Meets special protective needs such as stealth camouflage and cut resistance.

III. Industrial Upgrade Demonstration

Digital Factory Construction:

Connected equipment enables cloud-based management of production data, increasing efficiency by 60%.

Green Manufacturing Benchmark:

The energy consumption optimization system saves 150,000 kWh of electricity annually, earning provincial green factory certification.

Traditional Enterprise Transformation:

A single machine replaces four traditional production lines, reducing labor costs by 70%.

Note: This model has been successfully used in projects such as the Ordos Smart Factory, with a payback period of 8-10 months.

80 Inch Simple Double System Scarf Knitting Machine Specification

Gauge	7G9G10G12G14G16G
Knitting width	52, 60, 80,100, 120 Inch
Knitting system	Simple double system
Knitting speed	Controlled by servo-motor with 32 sections optional,   max speed reach 1.6m/s
Knitting function	Knit, miss, tuck, transfer, pointel, intarsia,   jacquard, apparent or hide shaping and other regular or irregular patterns.
Racking	Controlled by servo-motor racking within 2 inches and with fine adjusting function.
Stitch density	Controlled by stepping motor, 32 section stitch   select-able adjustable scope supported by subdivision technology: 0-650, the   stitch of the knitwear can be accurately controlled.
Dynamic stitch	Using high speed stepping motor, multi-stitch   function can be achieved in one line.
Needle selection	Advanced encoder reading pin.8-stage selecting   needle setup composed of special electromagnet is regarded as efficient full   width jacquard needle selector, which can be installed or removed simply from   the carriage and maintained easily.
Transfer system	Not affected by the direction of the carriage,   minute knitting.
Quickly turning	Intelligent switching braiding system improves   machine weaving efficiency.
Take-down system	Infrared alarm, computer programs instruction,   stepper motor control, 32-stagetension selection with an adjustable range   between 0-100.

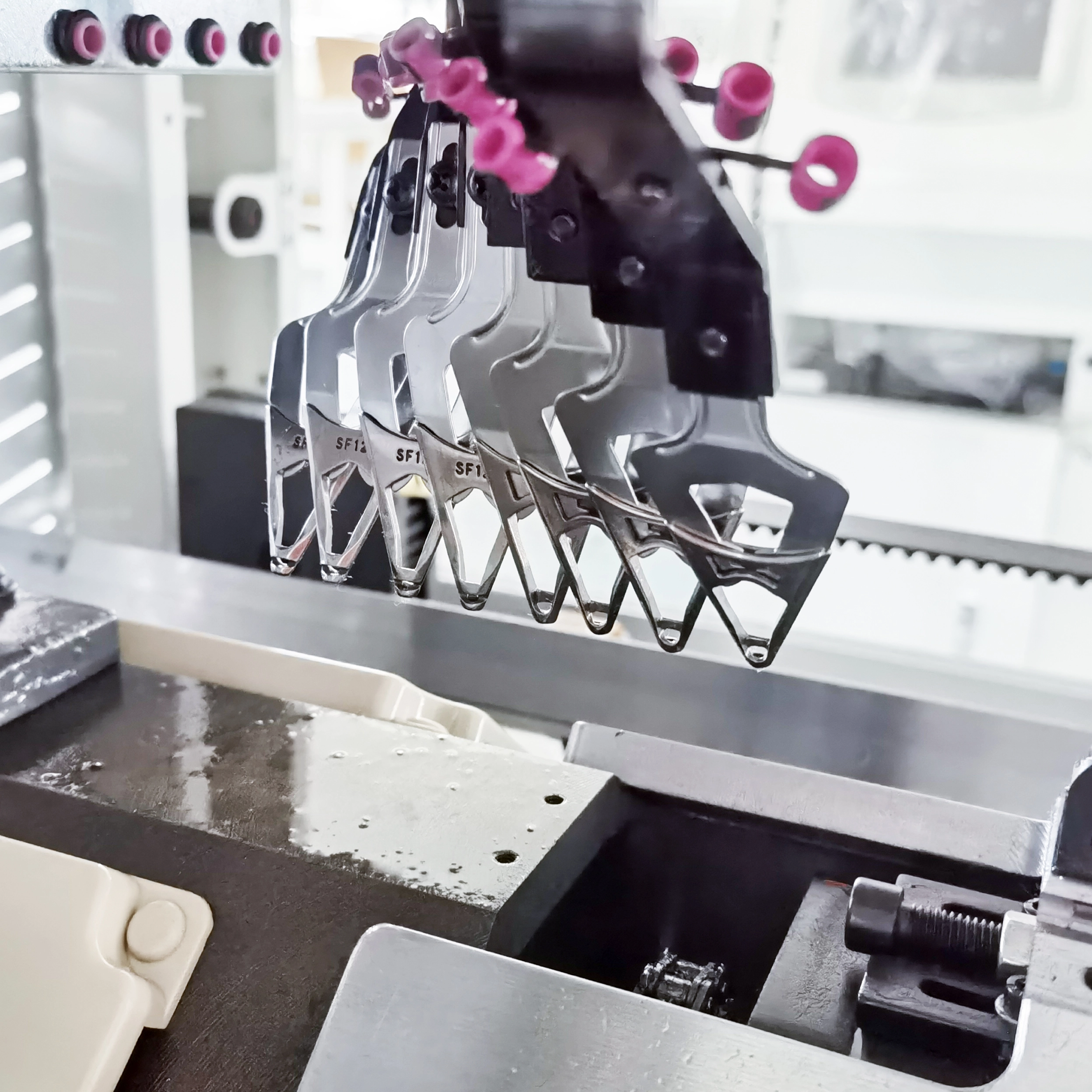

Color-changing system	2x4 yarn feeders on each side of 4 guide rails,   shift able on any needle position.

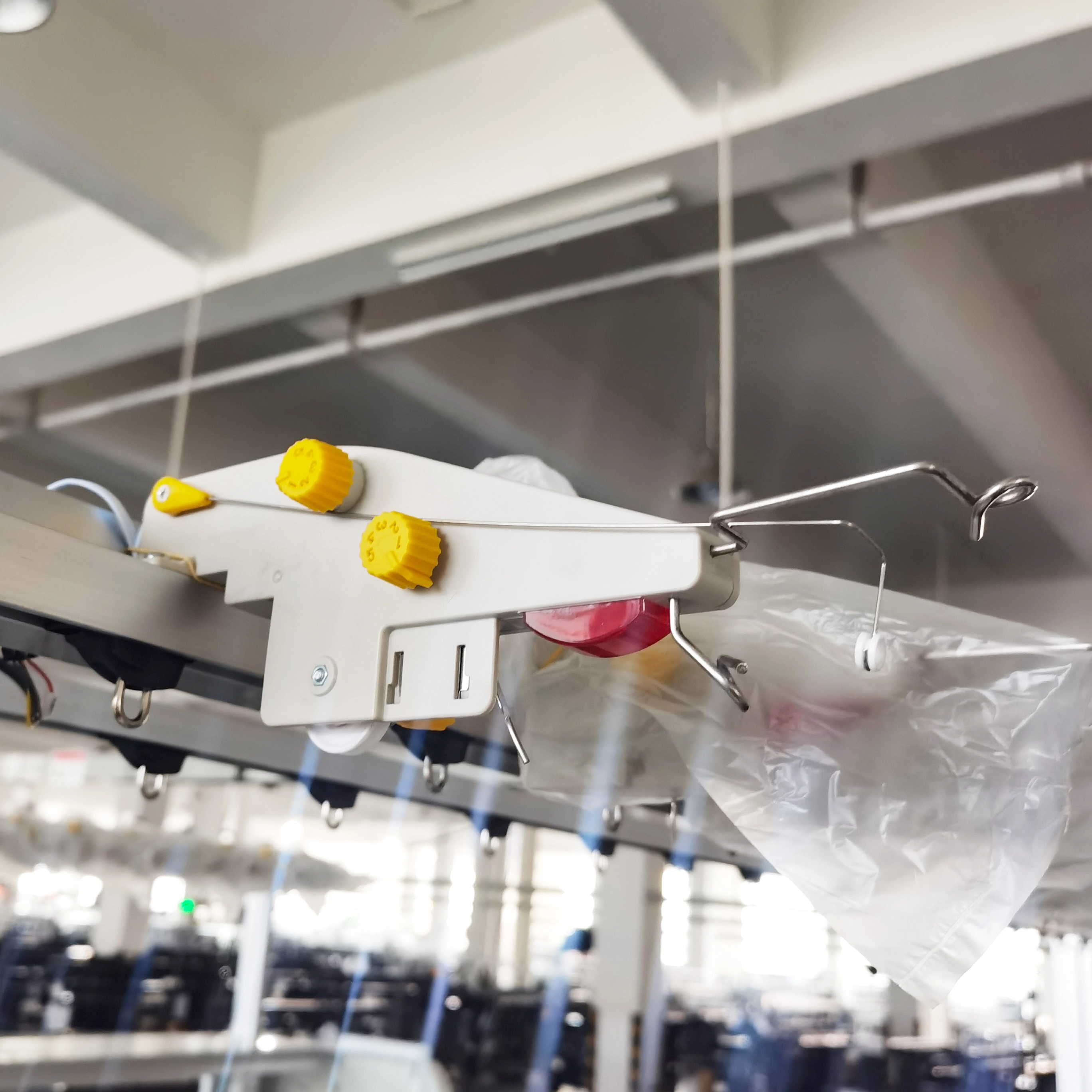

Yarn feeder device	Accurately control the tension of the yarn and   ensure the consistency of the whole woven piece quality.
Protection system	The machine will automatically alarm if   yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking,   needle breakage, error programming occur, also set up the safety auto-lock   protect device.
Refueling device	Automatic refueling: Control the refueling time and   frequency by setting the time. The oil pump lubricate the jack and long jack   needle on the needle bed automatically to reduce the wear of the machine and   increase its service life.

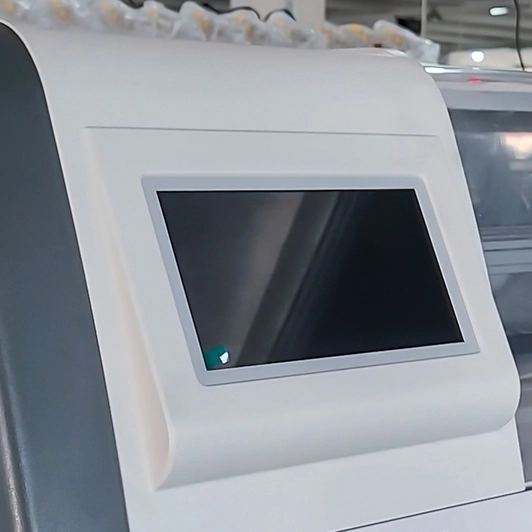

Control system	1. LCD industrial display, can display various   parameters, which can be adjustable during operation. 2.USB memory interface, System memory 2G. 3.Free design system is visual and easy to   understand and software upgrade free of charge. 4.Support multi-language operation as Chinese and   English, Spanish, Russian etc.
Network function	Has network interface, enable remote-monitoring via   network, and connecting with ERP system.
Power supply	Single-phase 220V/three-phase 380V, adopt advanced   CMOS technology, having memorizing function at power shock stop.
Non waste yarn Comb device	Non waste yarn Comb device (Optional)
Volume and weight	2500*900*1700mm,700kgs(52inch)
