52 Inch Standard Double System Sweater Flat Knitting Machine

Standard Double System has high roller, high-performance sinker, dynamic stitch, motor control reserving carriage, digital technology, high-speed and efficient, to achieve pointelle, tuck, jacquard, intarsia, full needle jacquard, apparent shape, hidden shape, and other irregular patterns, which is suitable for wool, cashmere, cotton, chemical fiber, silk and all kinds of blended yarn, the production of sweaters, blanket, scarfs, gloves, hats and knitted apparel accessories.

52 Inch 14G Standard Double System Sweater Flat Knitting Machine offered by China manufacturer Changhua. Buy wholesale at superior prices and high quality.

Brand:
Changhua
Gauge:
35G、5/7G、7G、8G、9G、10G、12G、14G、16G、
Knitting Width:
52Inch
Knitting System:
Double system, Double carriage double system (optional)
Knitting Speed:
Controlled by servo-motor with 32 sections optional, max speed reach 1.6m/s
Knitting Function:
Knit, miss, tuck, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns.

Quantity:
Availability:





Inquire

Product Description

52 Inch Standard Double System Sweater Knitting Machine Description

Standard Double System Flat Knitting Machine has high roller, high-performance sinker, dynamic stitch, motor control reserving carriage, digital technology, high-speed and efficient, to achieve pointelle, tuck, jacquard, intarsia, full needle jacquard, apparent shape, hidden shape, and other irregular patterns, which is suitable for wool, cashmere, cotton, chemical fiber, silk and all kinds of blended yarn, the production of sweaters, blanket, scarfs, gloves, hats and knitted apparel accessories.

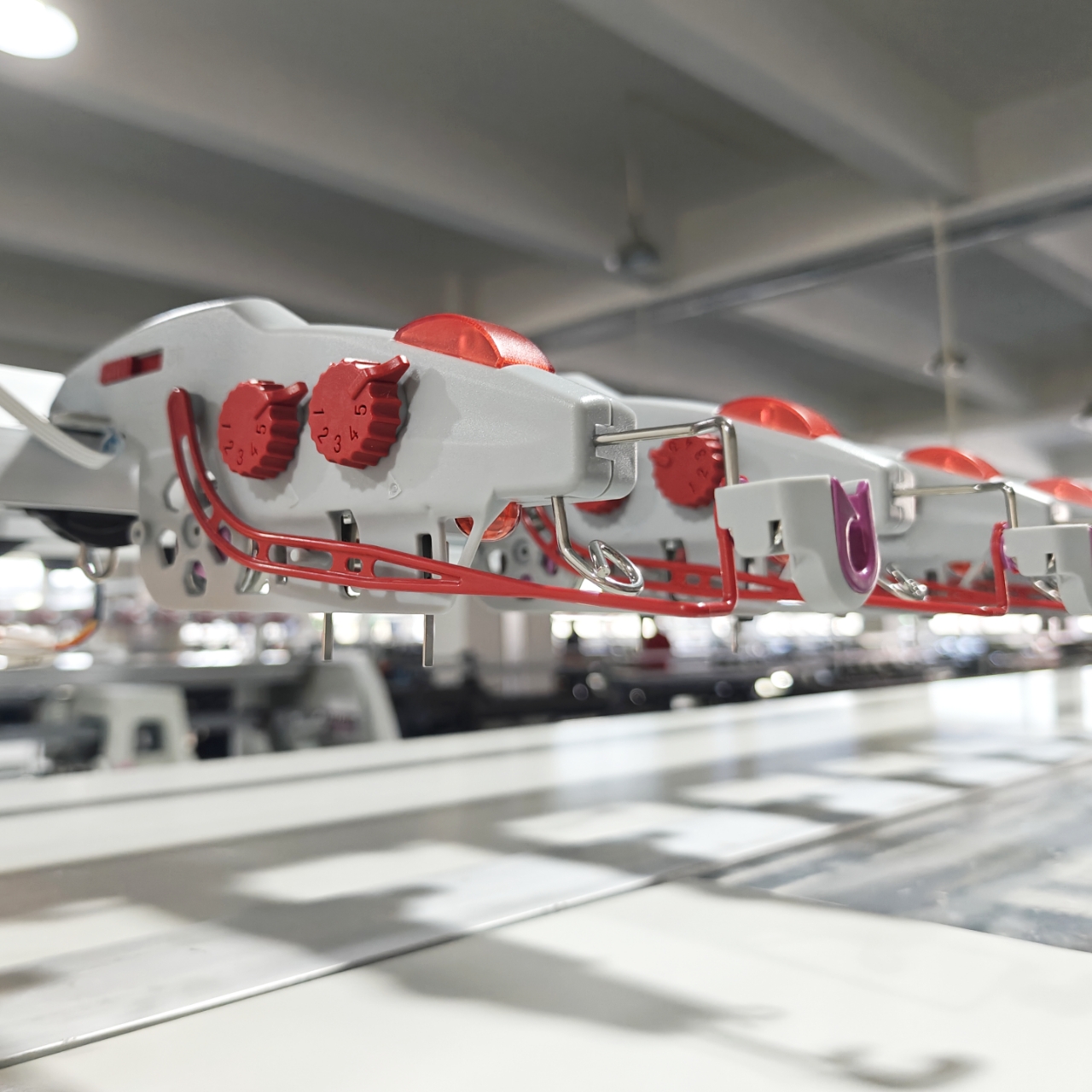

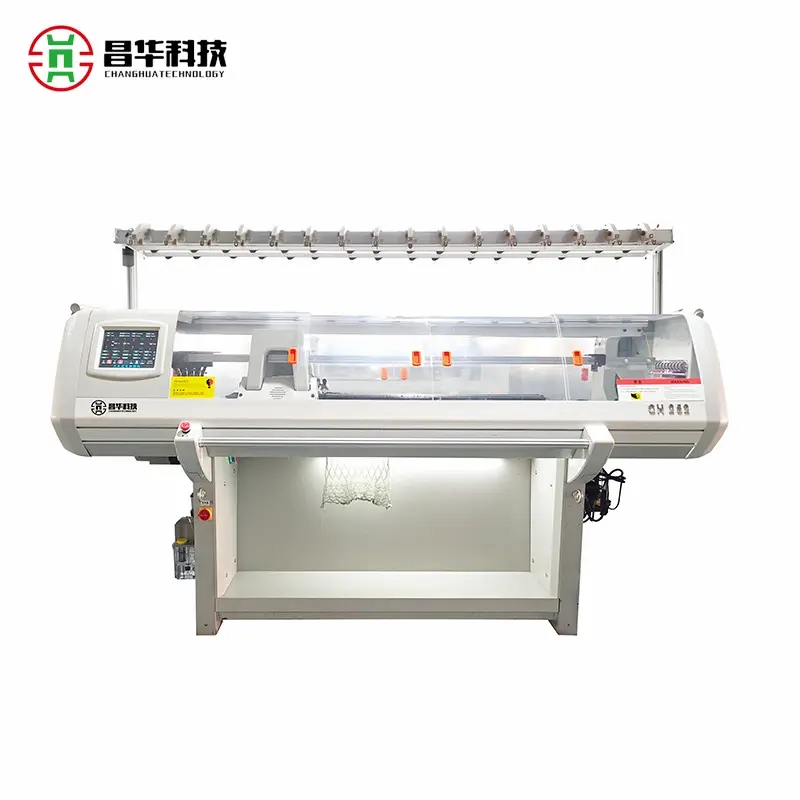

Standard double-system Sweater flat knitting machine

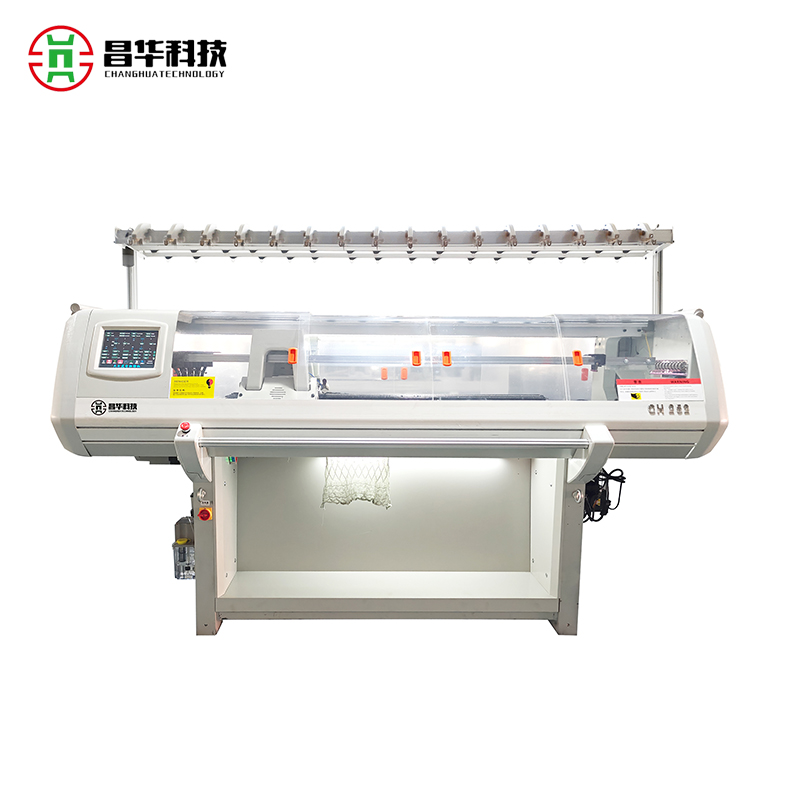

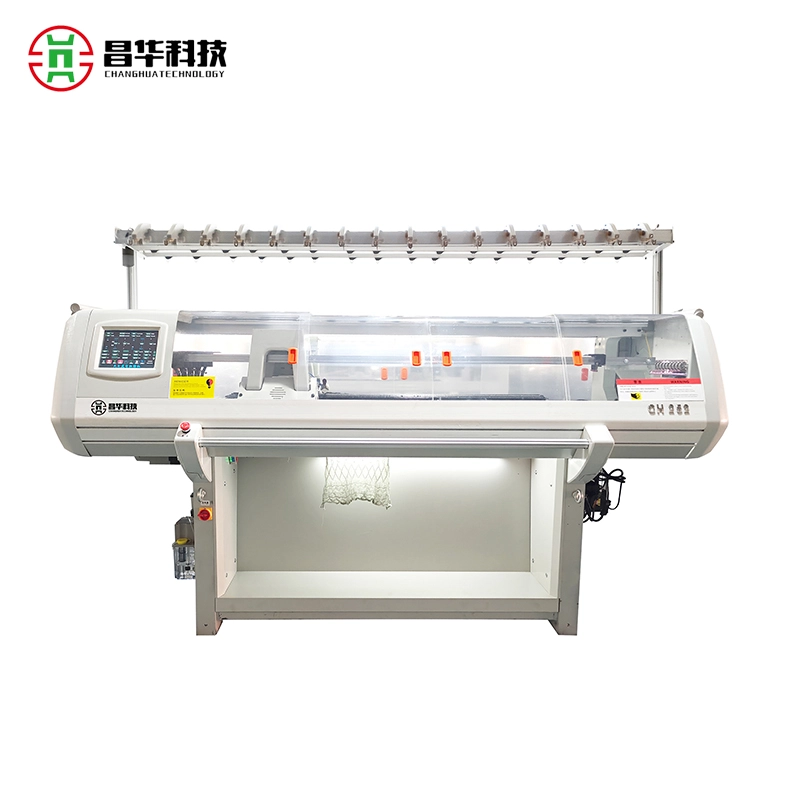

Standard Double System Flat Knitting Machine-White

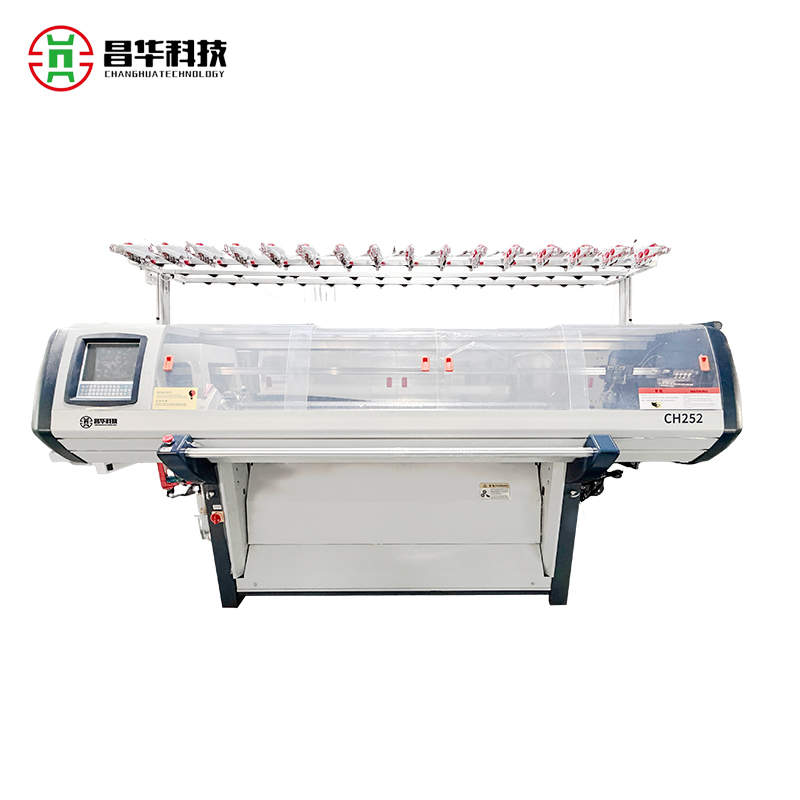

Standard Double System Flat Knitting Machine-Blue

Standard Double System Flat Knitting Machine

High-Efficiency Knitting: Changhua 52-inch Standard Dual-System Automatic Computerized Flat Knitting Machine

Dual-System High-Efficiency Knitting

The Changhua 52-inch standard dual-system automatic computerized flat knitting machine is designed to improve knitting production efficiency. Its core features advanced dual-system knitting technology, allowing two independent knitting systems to work simultaneously, achieving high-efficiency parallel operation and significantly shortening production cycles. With fully automated computer control, simply inputting the pattern program allows the machine to automatically complete complex processes such as yarn switching, knitting, and needle transfer, ensuring high precision and consistency in every knitted product and greatly reducing reliance on skilled workers.

Economical and Practical, Widely Applicable

As an "economical" model, it optimizes the cost structure while guaranteeing core performance, providing a cost-effective upgrade option for small and medium-sized knitting enterprises. The 52-inch knitting width (approximately 132 cm) flexibly adapts to the production needs of various garments such as sweaters and scarves. The machine is compatible with various yarns including cotton, wool, and chemical fibers, and is suitable for producing a wide range of fabric structures such as plain weave, rib knit, and jacquard, helping enterprises respond quickly to diverse market demands with lower investment and achieve flexible production of small batches and multiple varieties.

Sample Display

sweater knitting machine

品能样品集合

Changhua Knitting Machine For Sweaters

Knitted items produced by changhua computer sweater knitting machine

Fashion Knitwear Production

The Changhua economical computerized flat knitting machine performs exceptionally well in the fashion knitwear sector. Garment companies can efficiently produce front and back panels and sleeves for various sweaters, cardigans, and base layers. The dual-system design supports the rapid creation of complex textures such as jacquard and cable patterns. Its 52-inch width meets the size requirements for both adult and children's clothing, making it ideal for small and medium-sized garment factories producing trendy seasonal styles.

Home and Creative Product Manufacturing

This flat knitting machine is also suitable for the home furnishings sector. Manufacturers can utilize its fully automatic knitting function to mass-produce knitted home products such as sofa cushion covers, air conditioning blankets, and creative tablecloths. Its excellent yarn compatibility allows it to easily handle different materials such as cotton and blended yarns, and its cost-effective nature enables startup home furnishing brands to achieve diversified product development at a low cost.

Small Batch Orders and Educational Training

For small-batch, personalized orders (such as team uniforms and brand-customized souvenirs), this equipment can quickly switch patterns via computer programming, enabling flexible production. Furthermore, its intuitive operation and cost-effectiveness make it an ideal device for vocational and technical colleges to use in textile training programs, helping students master modern computerized flat knitting machine operation skills.

Specification

52 Inch Standard Double System Sweater Knitting Machine Specification

Gauge	1.5G2.5G3G3.5G5G5/7G7G8G9G10G12G14G16G18G
Knitting width	52, 60, 66, 72, 80, 100, 120 Inch
Knitting system	Double system, Double carriage double system (optional)
Knitting speed	Controlled by servo-motor with 32 sections optional, max speed reach 1.6m/s
Knitting function	Knit, miss, tuck, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns.
Racking	Controlled by servo-motor racking within 2 inches and with fine adjusting function.
Stitch density	Controlled by stepping motor, 32 section stitch select-able adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled.
Dynamic stitch	Using high speed stepping motor, multi-stitch function can be achieved in one line.
Needle selection	Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector, which can be installed or removed simply from the carriage and maintained easily.
Sinker system	controlled by stepping motor, adjustable to different knitwear, up to be various results of shaping and patterns.
Transfer system	Combined design, single or double cam system all can transfer together or separately. Also one can do transfer, another cam system for knitting, which will achieve high production.
Quickly turning	Intelligent switching braiding system improves machine weaving efficiency.
Take-down system	Infrared alarm, computer programs instruction, stepper motor control, 32-stagetension selection with an adjustable range between 0-100.

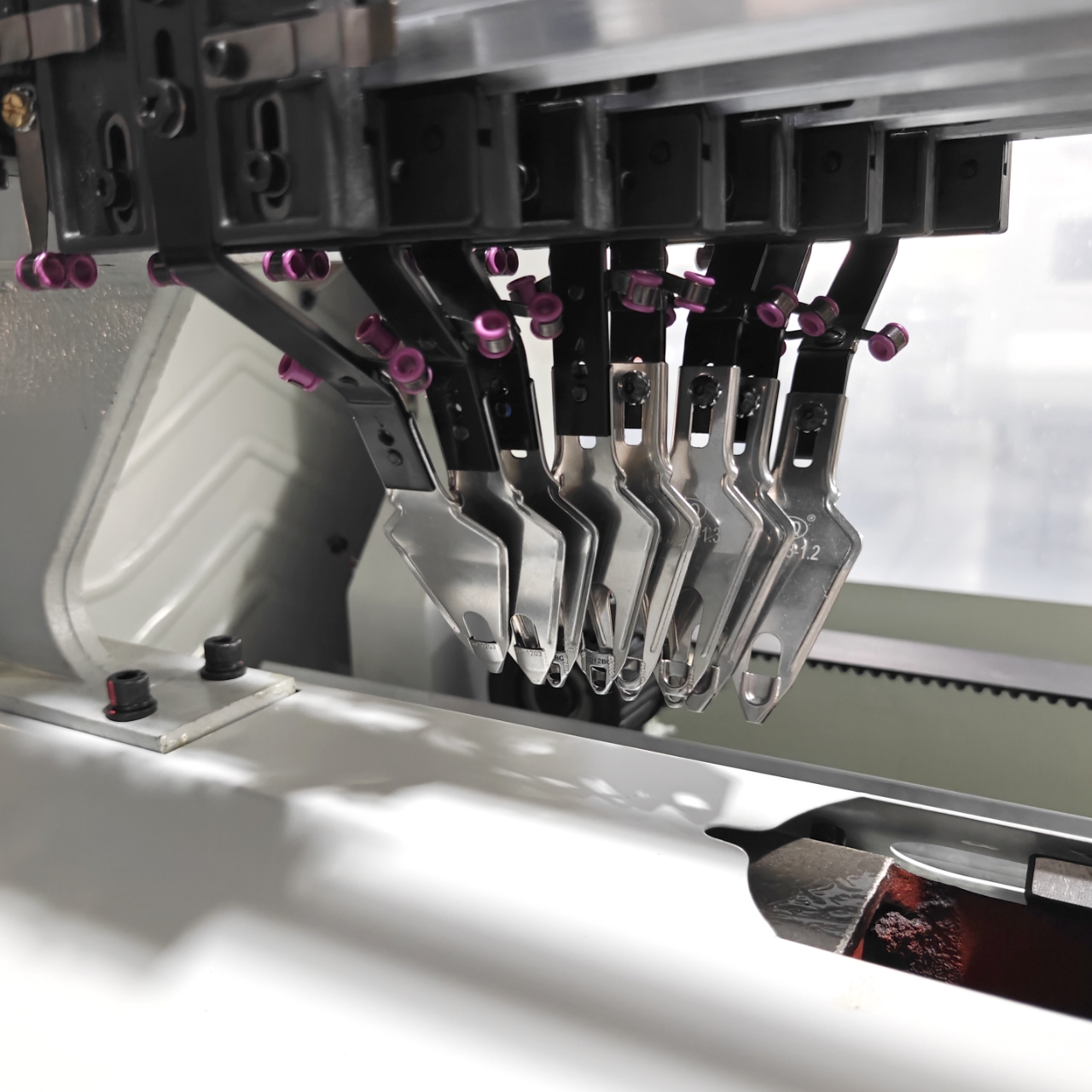

Color-changing system	2x8 yarn feeders on each side of 4 guide rails, shift able on any needle position.
Yarn feeder device	Accurately control the tension of the yarn and ensure the consistency of the whole woven piece quality.
Protection system	The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device.
Refueling device	Automatic refueling: Control the refueling time and frequency by setting the time. The oil pump lubricate the jack and long jack needle on the needle bed automatically to reduce the wear of the machine and increase its service life.

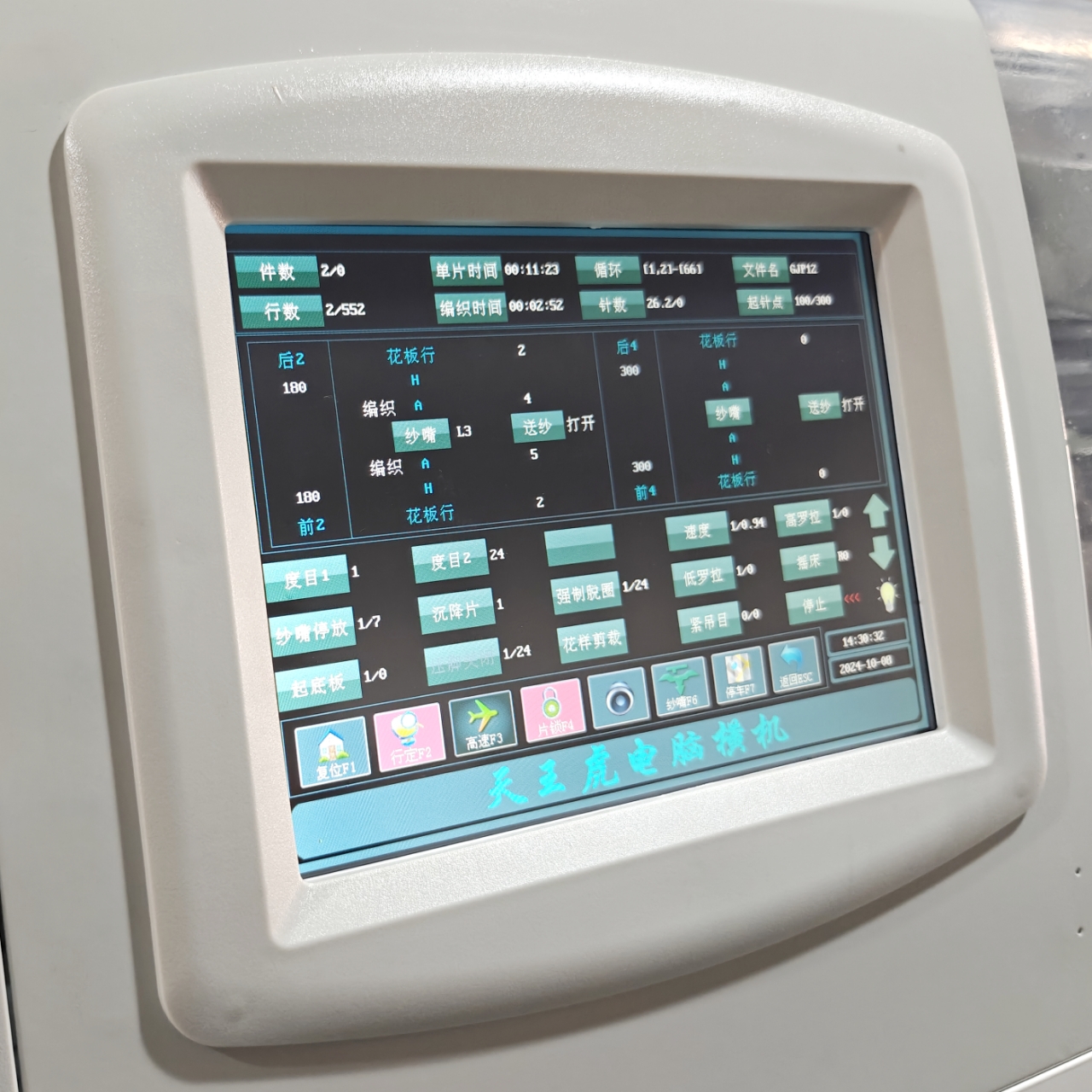

Control system	1. LCD industrial display, can display various parameters, which can be adjustable during operation. 2.USB memory interface, System memory 2G. 3.Free design system is visual and easy to understand and software upgrade free of charge. 4.Support multi-language operation as Chinese and English, Spanish, Russian etc.
Network function	Has network interface, enable remote-monitoring via network, and connecting with ERP system.
Power supply	Single-phase 220V/three-phase 380V, adopt advanced CMOS technology, having memorizing function at power shock stop.
Non waste yarn Comb device	Non waste yarn Comb device (Optional)
Volume and weight	300010001800mm1050kgs(52inch)
