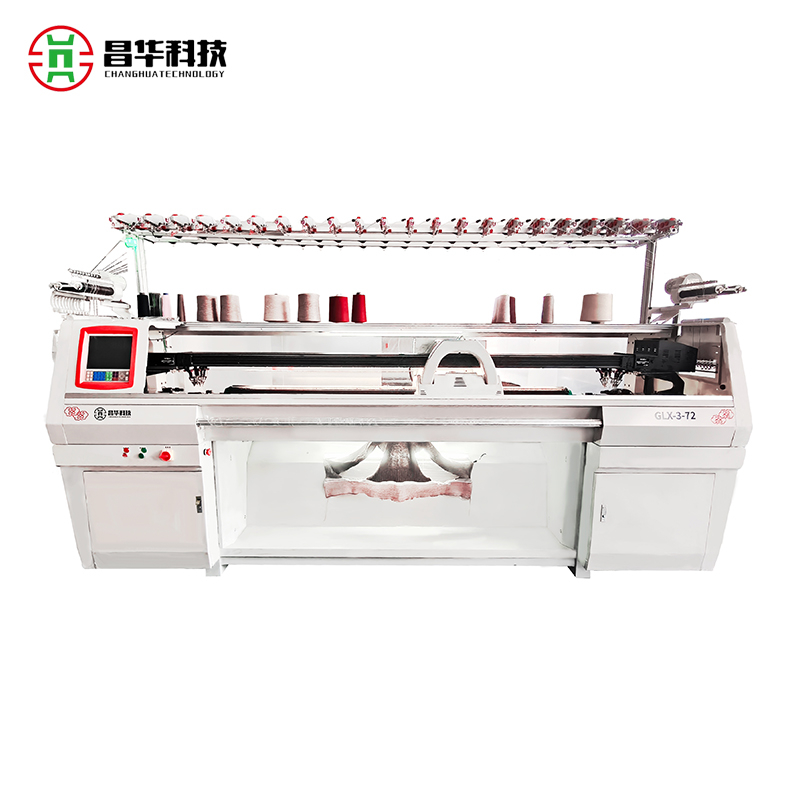

52 Inch Smart Running Spit System Flat Knitting Machine

Changhua Technology's "Smart Run" function for its computer-controlled knitting machines enables the coordinated operation of multiple systems for high-speed knitting and intelligent yarn management. It significantly improves the production efficiency and precision of complex patterns (such as intarsia and jacquard), while simultaneously reducing yarn waste. This technology is particularly suitable for high-end knitwear, apparel fabrics, and shoe uppers, where precise patterns and high production efficiency are critical.

52 Inch 14G Smart Running Spit System Flat Knitting Machine offered by China manufacturer Changhua. Buy wholesale at superior prices and high quality.

Brand:
Changhua
Gauge:
1.5G 2.5G 3G 3.5G 5G 5/7G 7G 8G 9G 10G 12G 14G 16G 18G
Knitting Width:
52, 60, 66, 72, 80, 100, 120 Inch
Knitting System:
Three System ，Double system, Double carriage double system (optional)，Double carriage three system (optional)
Knitting Speed:
Controlled by servo-motor with 32 sections optional, max speed reach 1.6m/s
Knitting Function:
Knit, miss, tuck, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns.

Quantity:
Availability:





Inquire

Product Description

52 Inch Smart Running Spit System Flat Knitting Machine Description

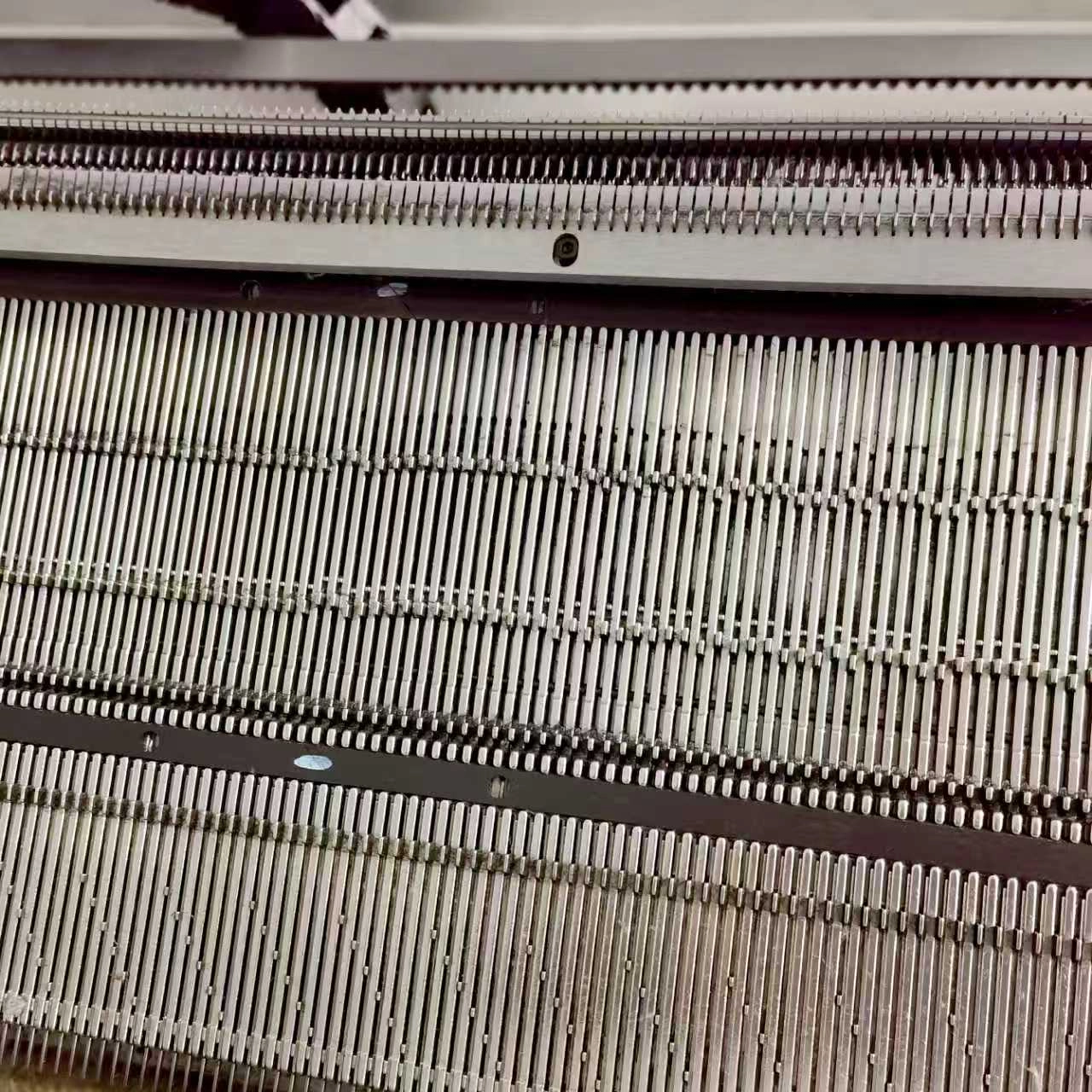

Smart Running Spit System

Smart Knitting System: Setting a New Benchmark in Intelligent Knitting

The Changhua 52-inch Smart Knitting fully automatic computer flat knitting machine, powered by the core "Smart Knitting" intelligent knitting system, leads the way in setting new standards for high-efficiency production. This system deeply optimizes the machine head's movement trajectory through intelligent algorithms, significantly reducing idle time and waiting time, achieving a dual breakthrough in knitting speed and stability. Its intelligent yarn feeding and tension control module automatically adapts to multiple types of yarns, from fine spun cotton to complex fancy yarns, ensuring high-quality loop formation and greatly improving production fluency and first-pass yield.

Versatile Configuration and Agile Production

This machine boasts an industry-standard 52-inch (approximately 132 cm) width, offering excellent adaptability and high production potential. Its body features a high-rigidity integrated design, ensuring stable and precise operation during long-term high-speed running. Standard features include an intelligent yarn rack, electronic rollers, and a visual touch control system, coupled with a wide range of needle options, allowing for easy handling of diverse processes from basic plain weave to complex jacquard patterns. Production instructions can be switched with a single click, truly enabling agile transitions between different orders.

Positioned for Flexible Responsiveness and Quality Upgrades

This model is precisely positioned for markets that demand high efficiency, high quality, and rapid response. It can serve as a reliable and stable mass production workhorse for medium-sized factories and is particularly suitable for handling diversified, fast-response orders from e-commerce brands and design studios. With its exceptional intelligent performance and broad process adaptability, it is a core intelligent manufacturing equipment that helps enterprises reduce overall costs, increase product added value, and gain a competitive advantage in the market.

Sample Display

sweater knitting machine

品能样品集合

Changhua Knitting Machine For Sweaters

Knitted items produced by changhua computer sweater knitting machine

High-Efficiency Production of a Full Range of Fast Fashion Apparel

This machine is specifically optimized to meet the multi-style, quick-turnaround demands of e-commerce brands, live streaming supply chains, and fast fashion brands. The "SmartRun" intelligent system can rapidly analyze and optimize different process files, enabling minute-level switching between orders. Its wide range of process adaptability allows for efficient production of a full range of products, from basic knitwear and trendy sweatshirts to complex jacquard dresses, making it the ideal core for high-efficiency, multi-batch flexible production.

Stable Mass Production of Highly Complex Patterns

With intelligent trajectory optimization and precise tension control, this equipment can excellently achieve stable mass production of highly complex patterns. Whether it's multi-color intarsia, fine-gauge lace effects, or designs using special yarns such as space-dyed yarn and mohair, it ensures uniform stitches and precise patterns, meeting the dual requirements of complex processes and superior quality for designer brands, high-end knitwear orders, and export trade.

Flexible Supply Chain and Customized Services

The "SmartRun" system gives the production line exceptional flexibility and responsiveness, making it a key piece of equipment for building a flexible supply chain. It can easily handle small orders of dozens of pieces for group customization and designer sample development, as well as large batch orders of thousands of pieces, enabling rapid prototyping and seamless production transitions. This helps companies serve high-end customized clients or quickly enter emerging niche markets with a "small order, quick response" model, minimizing inventory risk.

Specification

52 Inch Smart Running Spit System Flat Knitting Machine Specification

Gauge	1.5G2.5G3G3.5G5G5/7G7G8G9G10G12G14G16G18G
Knitting width	52, 60, 66, 72, 80, 100, 120 Inch
Knitting system	Three System ，Double system, Double carriage double system (optional)，Double carriage three system (optional)
Knitting speed	Controlled by servo-motor with 32 sections optional, max speed reach 1.6m/s
Knitting function	Knit, miss, tuck, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns.
Racking	Controlled by servo-motor racking within 2 inches and with fine adjusting function.

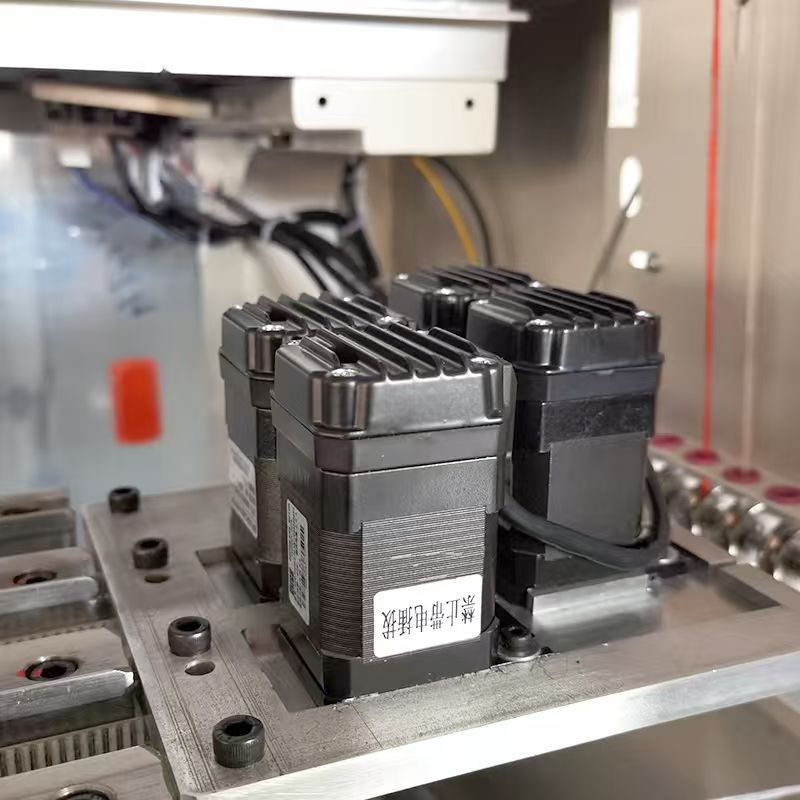

Stitch density	Controlled by stepping motor, 32 section stitch select-able adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled.
Dynamic stitch	Using high speed stepping motor, multi-stitch function can be achieved in one line.
Needle selection	Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector, which can be installed or removed simply from the carriage and maintained easily.
Sinker system	controlled by stepping motor, adjustable to different knitwear, up to be various results of shaping and patterns.
Transfer system	Combined design, single or double cam system all can transfer together or separately. Also one can do transfer, another cam system for knitting, which will achieve high production.
Quickly turning	Intelligent switching braiding system improves machine weaving efficiency.
Take-down system	Infrared alarm, computer programs instruction, stepper motor control, 32-stagetension selection with an adjustable range between 0-100.
Color-changing system	It adopts the Smart Run function, the 8×2 yarn feeders can be expanded to up to 32 yarn feeders, which can be freely switched within the effective range of the needle bed.
Yarn feeder device	Accurately control the tension of the yarn and ensure the consistency of the whole woven piece quality.
Protection system	The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device.
Refueling device	Automatic refueling: Control the refueling time and frequency by setting the time. The oil pump lubricate the jack and long jack needle on the needle bed automatically to reduce the wear of the machine and increase its service life.

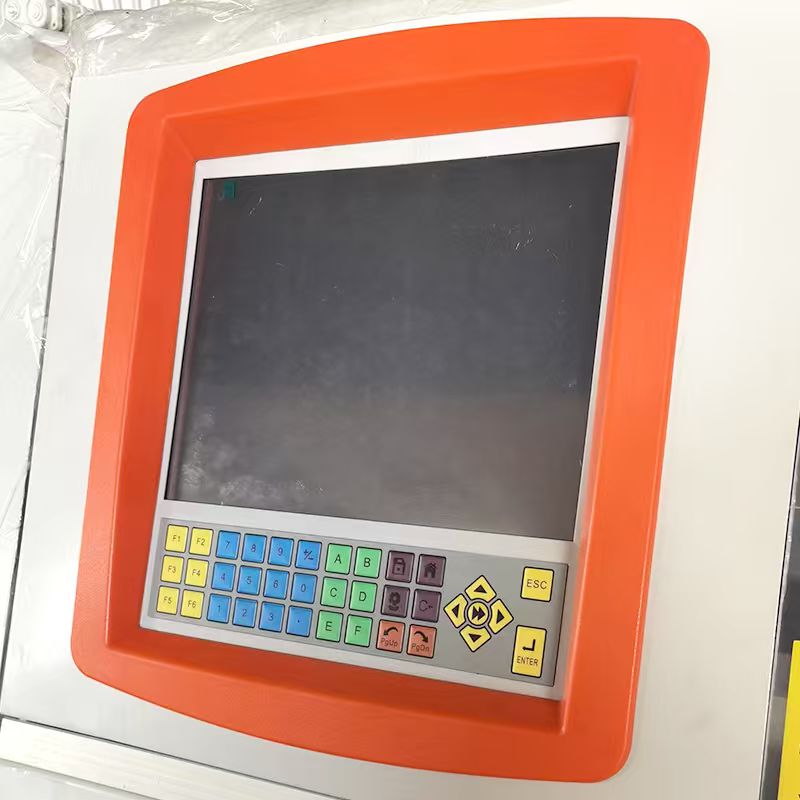

Control system	1. LCD industrial display, can display various parameters, which can be adjustable during operation. 2.USB memory interface, System memory 2G. 3.Free design system is visual and easy to understand and software upgrade free of charge. 4.Support multi-language operation as Chinese and English, Spanish, Russian etc.



Network function	Has network interface, enable remote-monitoring via network, and connecting with ERP system.
Power supply	Single-phase 220V/three-phase 380V, adopt advanced CMOS technology, having memorizing function at power shock stop.
Non waste yarn Comb device	Non waste yarn Comb device (Optional)
Volume and weight	350010001800mm1050kgs(52inch)

Feedback

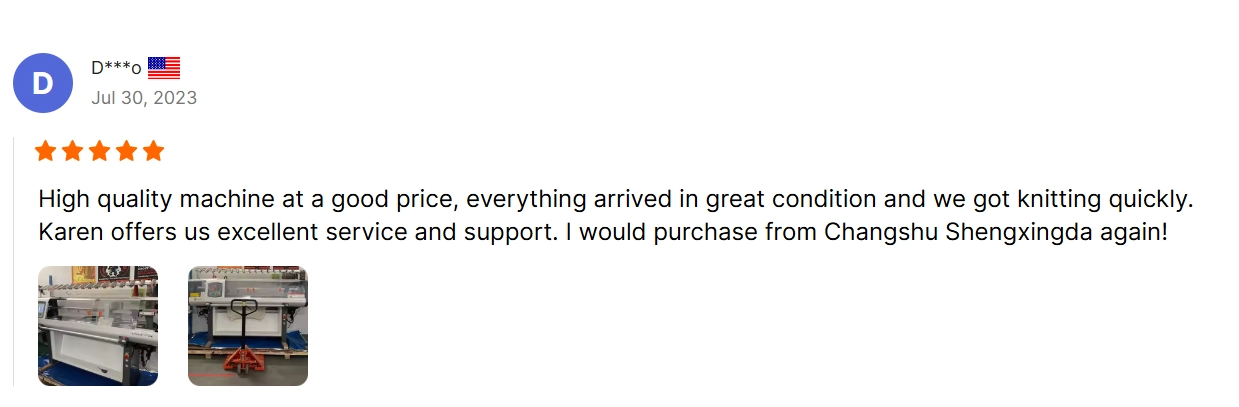

Sweater Knitting Machine Good Reviews from Customers

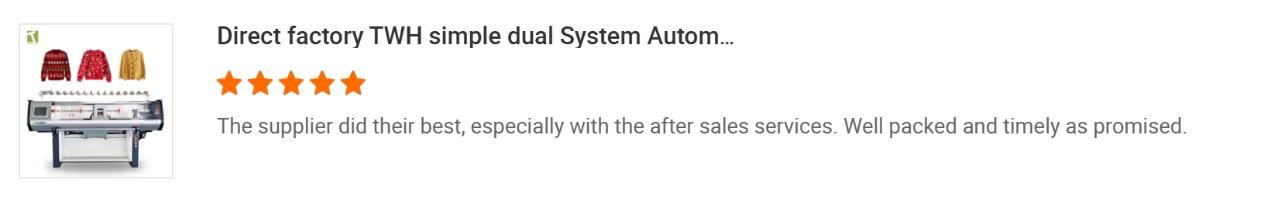

Double System Computerized Knitting Machine

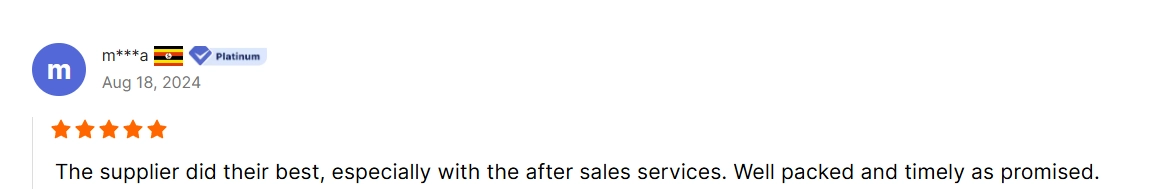

Double System Computerized Knitting Machine - Changhua

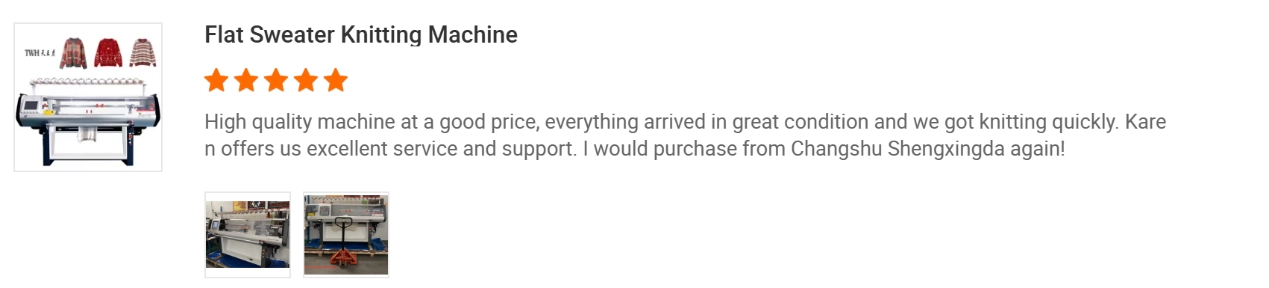

Sweater Flat Knitting Machine

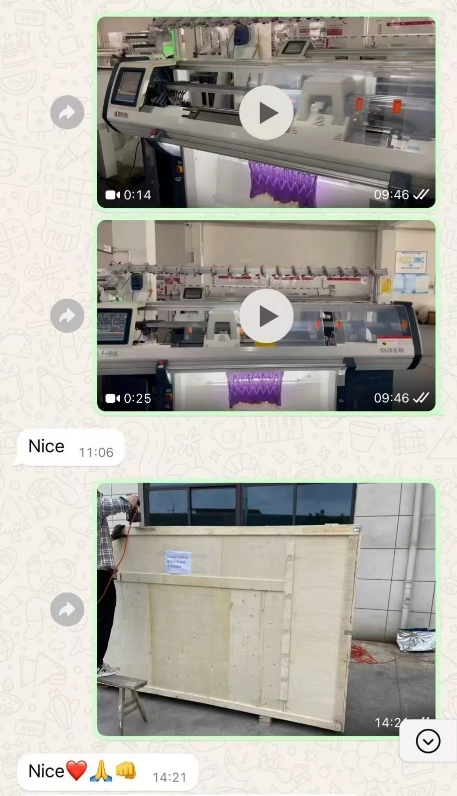

Sweater Flat Knitting Machine - Changhua machine
