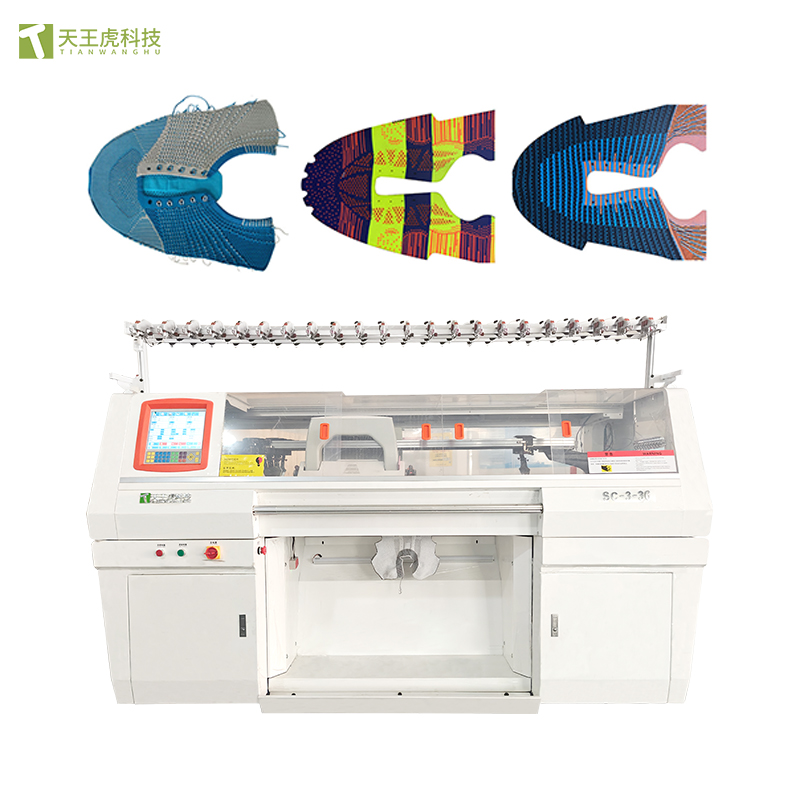

Shoe Upper Flat Knitting Machine

When it comes to crafting shoes, especially modern sneakers and sports footwear, the process starts with precision. And that precision? It comes from shoe upper flat knitting machines. These machines are the unsung heroes of the footwear industry, bringing together innovation, efficiency, and style. In this article, we’ll explore everything you need to know about these game-changing machines and how they’re reshaping footwear manufacturing.

What Is a Shoe Upper Flat Knitting Machine?

Definition and Purpose

A shoe upper flat knitting machine is a highly specialized piece of equipment designed to create the upper part of shoes. This part covers the top of the foot and is crucial for both the aesthetic and functionality of the shoe. These machines excel in producing seamless, durable, and intricate designs.

Why It’s Essential in Modern Footwear Manufacturing

In today’s fast-paced world, consumers demand footwear that’s not just stylish but also functional and sustainable. These machines enable manufacturers to meet those demands by offering precision, speed, and the ability to work with various materials.

Key Features of Shoe Upper Flat Knitting Machines

Advanced Technology

The heart of a great machine lies in its technology. With computerized controls, these machines can handle complex patterns and adjust on the fly, ensuring every product meets the highest standards.

Design Flexibility

Versatility is key. These machines allow manufacturers to experiment with different patterns, colors, and materials. Whether it’s a breathable knit for running shoes or a bold design for fashion sneakers, the possibilities are endless.

Energy Efficiency and Durability

Modern flat knitting machines are built to last, featuring energy-saving components that reduce operational costs. Plus, their robust build ensures they keep running efficiently, even under heavy workloads.

This is 36 Inch 14G Shoe Upper Flat Knitting Machine produced by Changhua Flat Knitting Machine Manufacturer. The video shows the appearance of the latest

three system 3d shoe upper knitting making machine from Changhua, which can be customized in appearance.

Types of Shoe Upper Flat Knitting Machines

Changhua Three-System Shoe Upper Flat Knitting Machines

Gauge	14G、16G、18G
Knitting width	36, 52, 72, 80 Inch
Knitting system	Three system
Knitting speed	Controlled by servo-motor with 128 sections  optional, max speed reach 1.6m/s
Knitting function	Knit, miss, tuck, transfer, pointel, intarsia,   jacquard, apparent or hide shaping and other regular or irregular patterns.
Racking	Controlled by servo-motor racking within 2 inches and with fine adjusting function.
Stitch density	Controlled by stepping motor, 128 section stitch select-able adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled.
Dynamic stitch	Using high speed stepping motor, multi-stitch   function can be achieved in one line.
Needle selection	Advanced encoder reading pin.8-stage selecting   needle setup composed of special electromagnet is regarded as efficient full   width jacquard needle selector, which can be installed or removed simply from   the carriage and maintained easily.
Sinker system	Using the control principle of cross sinker, more   lines of local braiding can be carried out, which plays a positive role in the   braiding of complex tissues. Independent signal, subsystem control.
Transfer system	Combined design, single or double cam system all can   transfer together or separately. Also one can do transfer, another cam system   for knitting, which will achieve high production.
Quickly turning	Intelligent switching braiding system improves   machine weaving efficiency.
Take-down system	Infrared alarm, computer programs instruction,   stepper motor control, 128-stagetension selection with an adjustable range   between 0-100.
Color-changing system	2x8 yarn feeders on each side of 4 guide rails,   shift able on any needle position.
Yarn feeder device	The roller feeding device can precisely control the   tension of the yarn and ensure the consistency of the whole fabric quality.
Protection system	The machine will automatically alarm if   yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking,   needle breakage, error programming occur, also set up the safety auto-lock   protect device.
Refueling device	Automatic refueling: Control the refueling time and   frequency by setting the time. The oil pump lubricate the jack and long jack   needle on the needle bed automatically to reduce the wear of the machine and   increase its service life.
Control system	1. LCD industrial display, can display various   parameters, which can be adjustable during operation. 2.USB memory interface, System memory 2G. 3.Free design system is visual and easy to   understand and software upgrade free of charge. 4.Support multi-language operation as Chinese and   English, Spanish, Russian etc.
Network function	Has network interface, enable remote-monitoring via   network, and connecting with ERP system.
Power supply	Single-phase 220V/three-phase 380V, adopt advanced   CMOS technology, having memorizing function at power shock stop.
Sub roller	Sub roller (Optional)
Presser device	Positioned on front and rear presser (Optional)
Volume and weight	3000*1000*1800mm1150kgs(52inch)
Reducing device	Automatic refueling: Control the refueling time and   frequency by setting the time. The oil pump lubricate the jack and long jack   needle on the needle bed automatically to reduce the wear of the machine and   increase its service life.

Choosing the Right Machine for Your Needs

Changhua Shoe Upper knitting machine of 18G

We can see that the 36-inch upper machine being debugged in the workshop. It adopts a small carriage, with fast rotation speed, lightness and stability, could perform knitting operations to improve production efficiency quickly and accurately.

Equipped with advanced needle selectors, special sinker settings, and high-position rollers,to ensures smoother pulling, makes the uppers structure more three-dimensional, so as to improve the quality and appearance of the uppers.

In addition to shoe uppers, the machine can also be used to produce sports protective gear products such as knee pads and waist guards.

Benefits of Using Flyknit Shoe Upper Flat Knitting Machine

Precision and Customization

The 2024 Flyknit machines offer advanced precision in knitting, allowing for intricate designs and patterns that can be customized to meet specific performance or aesthetic needs. This enables brands to create unique, high-quality footwear that stands out in the market.

Seamless Construction

These machines produce seamless shoe uppers, which eliminates the need for stitching. This results in a more comfortable fit, as there are no seams to cause irritation.

The seamless design also enhances the durability and overall strength of the shoe.

Material Efficiency and Sustainability

The machines are highly efficient in material usage, reducing waste by knitting the upper directly into shape.

This process not only lowers production costs but also supports sustainability efforts by minimizing material waste and reducing the carbon footprint.

Enhanced Performance Features

The Flyknit uppers created by these machines can be engineered with specific zones for breathability, stretch, and support, tailored to the needs of the wearer.

This enhances the performance of the shoes, making them ideal for athletes and active individuals.

High Production Speed

The 2024 models are designed for high-speed production, allowing manufacturers to meet high demand efficiently.

This is especially important in the competitive footwear market, where quick turnaround times can be a significant advantage.

Versatility in Design

These machines can knit a wide range of designs, from solid colors to complex, multi-colored patterns.

This versatility is essential for brands looking to innovate and offer a diverse range of products.

Durability and Longevity

The Flyknit technology produced by these machines is known for its durability.

The tightly knitted fabric is resilient and can withstand rigorous use, making it ideal for both casual and athletic wear.
