Semi-automatic Knitting Machine for Knitting Sweaters

The world of textile manufacturing has been transformed by the advent of semi-automatic knitting machines, particularly for crafting sweaters. These machines strike a perfect balance between automation and human creativity, offering efficiency, precision, and versatility for businesses and designers alike. Whether you’re a small-scale knitwear designer, a medium-sized textile business, or a hobbyist looking to scale up production, semi-automatic knitting machines are game-changers. In this comprehensive guide, we'll explore the mechanics, applications, and benefits of semi-automatic knitting machines for sweaters, with a special focus on why Changhua's machines stand out in the industry. Along the way, we'll include images, videos, and downloadable our comprehensive PDF guide on the Changhua flat knitting machine.pdf and one stop programmes.pptx to help you make an informed decision.

How Do Semi-Automatic Knitting Machines Work?

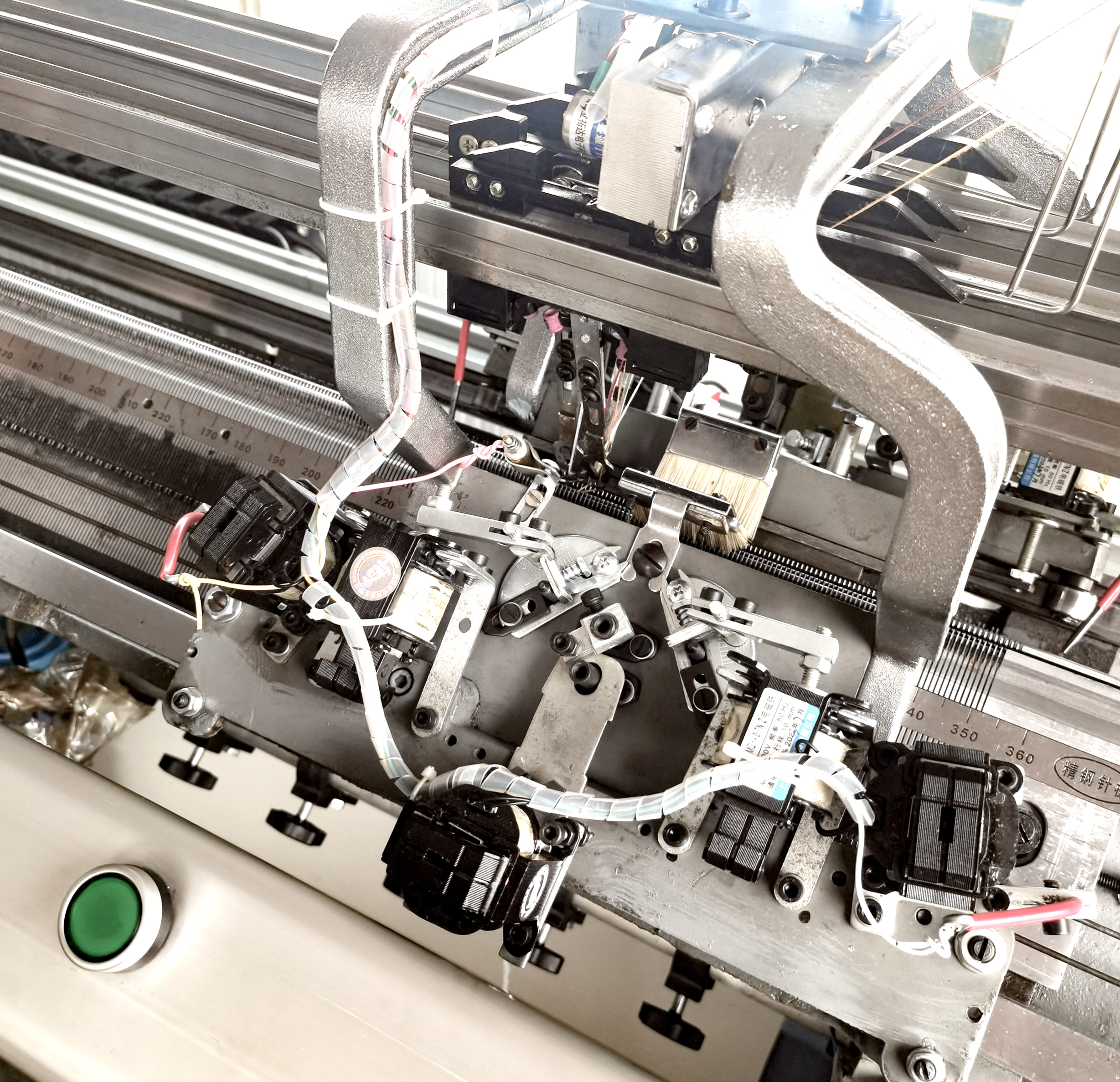

Needle Bed and Carriage

The needle bed holds a series of needles that interloop yarn to form stitches. The carriage, which moves back and forth across the needle bed, controls needle movements and yarn feeding.

Yarn Feeding

Operators manually thread the yarn into the machine, adjusting tension as needed to ensure consistent stitching.

Pattern Programming

Many semi-automatic machines allow operators to input patterns manually or via punch cards, ensuring precise stitch designs like ribbing, cables, or jacquard.

Tension and Density Control

Operators adjust tension settings to control the fabric’s thickness and elasticity, critical for sweater production.

Finishing

Once the fabric is knitted, it's removed from the machine and prepared for cutting, sewing, or shaping into a sweater.

Why Choose Semi-Automatic Over Fully Automatic?

Cost-Effectiveness

Semi-automatic machines are generally more affordable, making them accessible for small to medium-sized businesses or startups.

Design Flexibility

The ability to manually adjust patterns and settings allows for greater creativity and customization, ideal for producing unique sweater designs.

Ease of Maintenance

With fewer complex components than fully automatic machines, semi-automatic models are easier and cheaper to maintain.

Skill Development

Operators can hone their knitting expertise, blending traditional craftsmanship with modern technology.

Benefits of Using Semi-Automatic Knitting Machines for Sweaters

Enhanced Productivity

Compared to hand-knitting, semi-automatic machines significantly speed up the production process. A single machine can produce multiple sweater panels in a fraction of the time it would take to knit by hand, making it ideal for businesses looking to scale up without sacrificing quality.

Consistent Quality

The automated needle movements and tension controls ensure consistent stitch quality, reducing errors like dropped stitches or uneven tension. This results in professional-grade sweaters that meet consumer expectations.

Cost Savings

By reducing labor costs and minimizing yarn waste, semi-automatic machines offer significant savings over time. Their affordability compared to fully automatic models also makes them an attractive investment for startups or businesses with limited budgets.

Creative Freedom

The ability to manually adjust patterns and settings empowers designers to experiment with unique textures, colors, and styles. This creative freedom is especially valuable in the competitive fashion industry, where differentiation is key.

Eco-Friendly Production

Many semi-automatic machines, including those from Changhua, support the use of eco-friendly yarns and minimize waste through precise knitting. This aligns with the growing demand for sustainable fashion practices.

Key Features of Changhua's Semi-Automatic Knitting Machines

Precision Engineering

Changhua’s machines feature high-quality components, such as milling-type needle beds and precision guide rails, ensuring straight, flat fabrics with clear stitch lines. This is particularly important for sweater collars and ribs, where consistency is critical.

Digital Technology

Many models incorporate digital controls for functions like rib transfer, jacquard, and needle narrowing, allowing for complex sweater patterns with minimal effort.

Versatile Gauge Options

Changhua machines support multiple gauge settings (e.g., 1.5G to 18G), enabling the production of sweaters with varying thicknesses and textures.

User-Friendly Interface

The intuitive control panel, available in English and Chinese, allows operators to input technical data directly, reducing the learning curve.

Robust After-Sales Support

Changhua offers installation, training, and maintenance services, ensuring long-term reliability and performance.

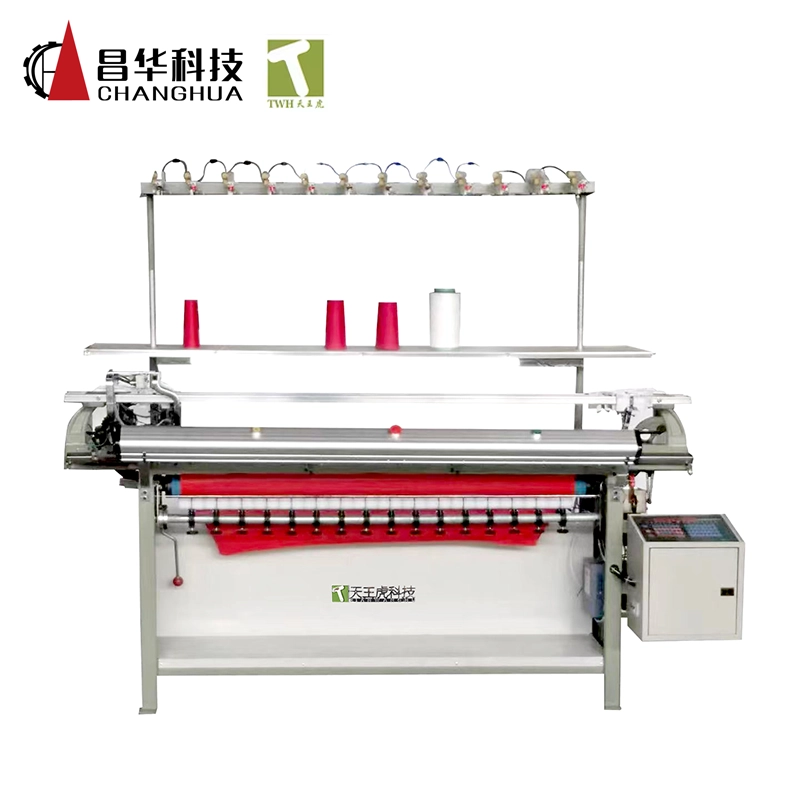

Here is the 60 Inch Semi Automatic Flat Knitting Machine Description

1	Auto collar & cuff Knitting machine, with customized gauge and needle bed width
2	Program-able  racking 1-2 needles
3	Equipped with front and gear both knitting bed with high butt /low butt needle
4	Combined Cam select by program design from control panel, with knitting /rest/tuck three way knitting technology
5	2 stitch quality available program select and manual adjustable
6	1-6 Yarn feeder on three rail guide,auto changes by program
7	Speed Come to Max. 1meter per second adjustable from Program
8	Auto knitting fabric take down
9	Rated Power: Single phase 220V 0.55 Kw

Why Changhua Stands Out

20+ Years of Expertise

Changhua’s extensive experience ensures reliable, high-performance machines tailored to sweater production.

Global Reach

Trusted by brands worldwide, Changhua’s machines are proven in diverse markets.

Innovation-Driven

Continuous R&D keeps Changhua at the forefront of knitting technology.

Customer-Centric Approach

Changhua’s motto, “Customer satisfaction is the only standard to test our work,” reflects their commitment to quality and service.

How to Choose the Right Semi-Automatic Knitting Machine for Sweaters

Getting Started with Your Changhua Semi-Automatic Knitting Machine

Installation and Setup

Changhua provides comprehensive installation support, ensuring your machine is set up correctly. Their team will guide you through:

Machine Calibration

Adjusting needle alignment and tension for optimal performance.

Software Updates

Ensuring the control panel firmware is up to date.

Safety Checks

Verifying that all components are functioning properly.

Training and Skill Development

Changhua offers operator training to help you maximize the machine’s potential. Training covers:

Pattern Programming

Inputting designs via punch cards or digital controls.

Yarn Handling

Selecting and threading yarns for consistent results.

Troubleshooting

Addressing common issues like uneven stitches or machine jamming.

Maintenance Tips

To keep your Changhua machine in top condition:

Clean Regularly

Remove lint and debris from the needle bed and carriage.

Oil Moving Parts

Lubricate components to reduce wear and prolong machine life.

Update Firmware

Ensure software is current to avoid errors.

Inspect Needles

Replace damaged or worn needles to maintain stitch quality.

Conclusion

Semi-automatic knitting machines have revolutionized sweater production, offering a perfect blend of efficiency, creativity, and cost-effectiveness. Whether you’re crafting cozy cable-knit pullovers or sleek jacquard cardigans, these machines empower businesses and designers to bring their visions to life. Among the many options available, Changhua’s semi-automatic knitting machines stand out for their precision, versatility, and commitment to customer satisfaction. With over 20 years of expertise, Changhua is the go-to choice for businesses looking to elevate their sweater production.

Ready to take your knitwear business to the next level? Contact us to explore our range of semi-automatic knitting machines, request a demo, or download our free PDF guide. Invest in Changhua today and start creating sweaters that captivate your customers.
